Transmission Fluid Pump, Front Differential Carrier Baffle, And Front Differential Ring Gear Installation (Gen 3)

WARNING: This page is about a different variant/trim than selected.

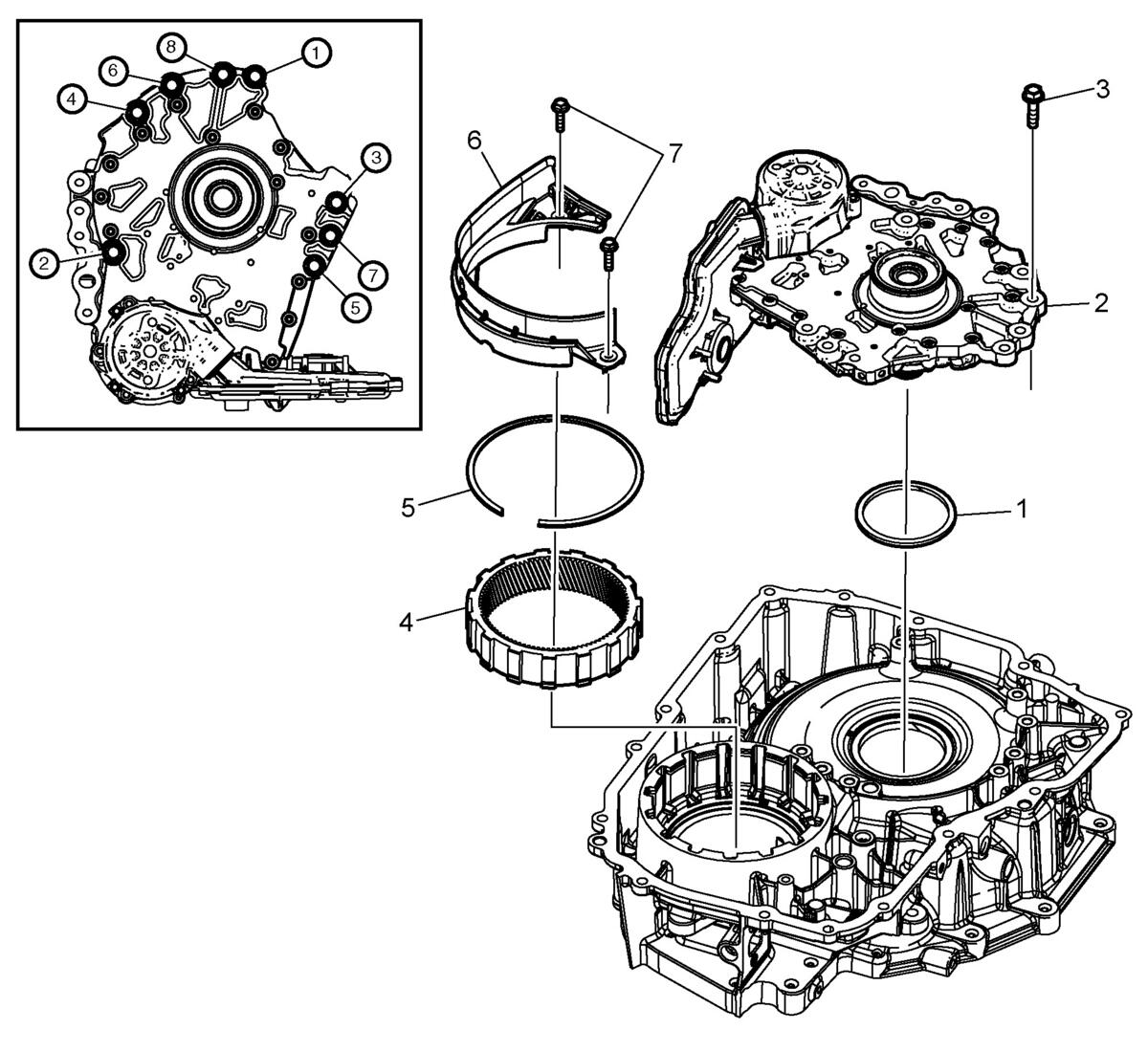

Fig 1: Exploded View Of Transmission Fluid Pump, Front Differential Carrier Baffle, And Front Differential Ring Gear Components (With Tightening Sequence)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Torque Converter and Differential Housing Seal
2	Automatic Transmission Fluid Pump
3	Automatic Transmission Fluid Pump Bolts M8 x 33 (Qty: 8) CAUTION: Refer to Fastener Caution . Procedure Tighten the bolts in the sequence shown. Tighten the bolts as first pass to 10 N.m (89 lb in). Tighten the bolts a final pass an additional 45 degrees. Special Tool EN-45059 Angle Meter or equivalent For equivalent regional tools, refer to Special Tools .
4	Front Differential Ring Gear
5	Front Differential Ring Gear Retainer NOTE: Install the retainer with the taper facing away from the ring gear.
6	Front Differential Carrier Baffle
7	Front Differential Carrier Baffle Bolts M6 x 25 (Qty: 2) Tighten 12 N.m (106 lb in)
