Automatic Transmission Fluid Pump Cover Disassemble

WARNING: This page is about a different variant/trim than selected.

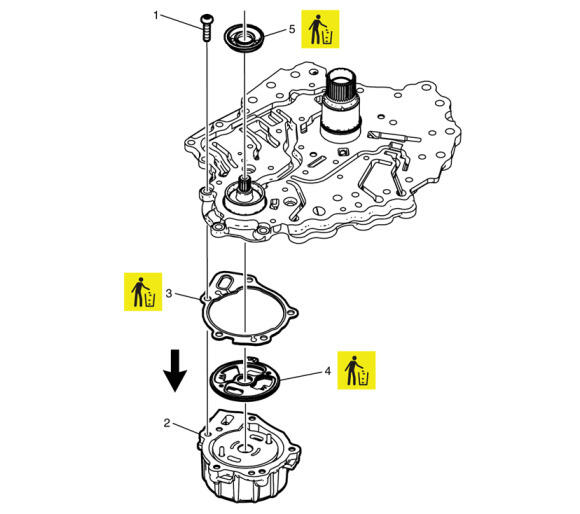

Fig 1: Exploded View Of Automatic Transmission Fluid Pump Cover Components

GM3285784

Courtesy of GENERAL MOTORS COMPANY

Automatic Transmission Fluid Pump Cover Disassemble

Callout	Component Name
CAUTION: After cleaning the transmission components, allow to air dry. Do not use cloth or paper towels in order to dry any transmission components. Lint from the towels can cause component failure. CAUTION: Do not reuse cleaning solvents. Previously used solvents may deposit sediment which may damage the component. Preliminary Procedure Clean and inspect all components for wear and/or damage.
1	Automatic Transmission Fluid Pump Cover Bolt M6 x 25 (Qty: 5)
2	Automatic Transmission Fluid Pump Assembly
3	Automatic Transmission Fluid Pump Gasket NOTE: DISCARD the gasket.
4	Automatic Transmission Fluid Pump Pressure Plate Seal NOTE: DISCARD the seal.
5	Automatic Transmission Fluid Pump Seal
