Automatic Transmission Fluid Pump Body Disassemble

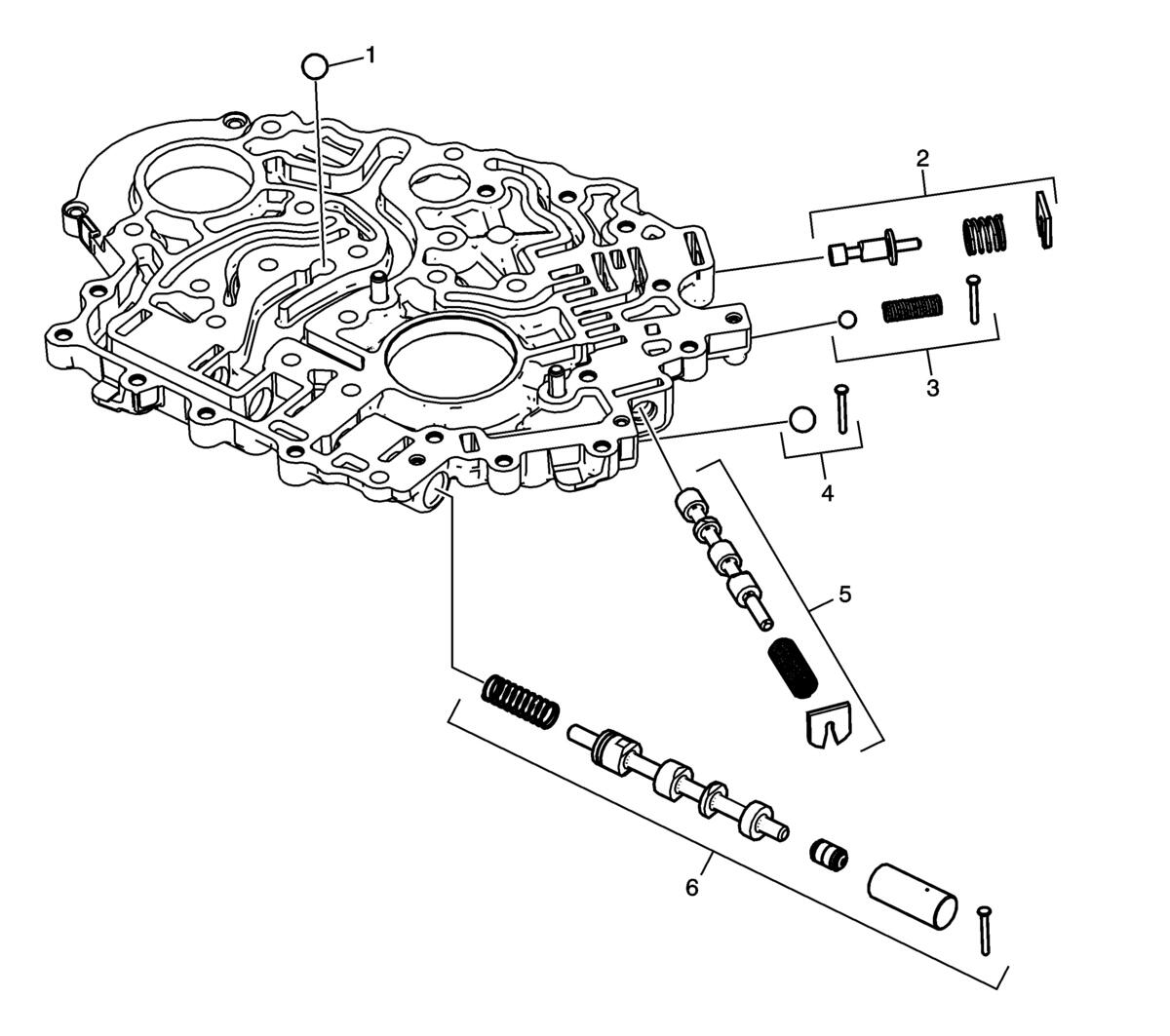

| Callout | Component Name |
|---|---|
|
WARNING:
Valve springs can be tightly compressed. Use care when removing retainers and plugs. Personal injury could result.
CAUTION:
After cleaning the transmission components, allow to air dry. Do not use cloth or paper towels in order to dry any transmission components. Lint from the towels can cause component failure.
CAUTION:
Preliminary Procedure Clean and inspect all valve components for wear and/or damage.Do not reuse cleaning solvents. Previously used solvents may deposit sediment which may damage the component. |
|
| 1 | Direct Clutch Exhaust Valve |
| 2 | Lube Boost Valve Train |
| 3 | Torque Converter Clutch Blow Off Ball Valve Train |
| 4 | Automatic Transmission Fluid Pump Blow Off Ball Valve Train |
| 5 | Torque Converter Clutch Control Valve Train |
| 6 | Pressure Regulator Valve Train |
