Automatic Transmission Fluid Pump Cover Assemble

WARNING: This page is about a different variant/trim than selected.

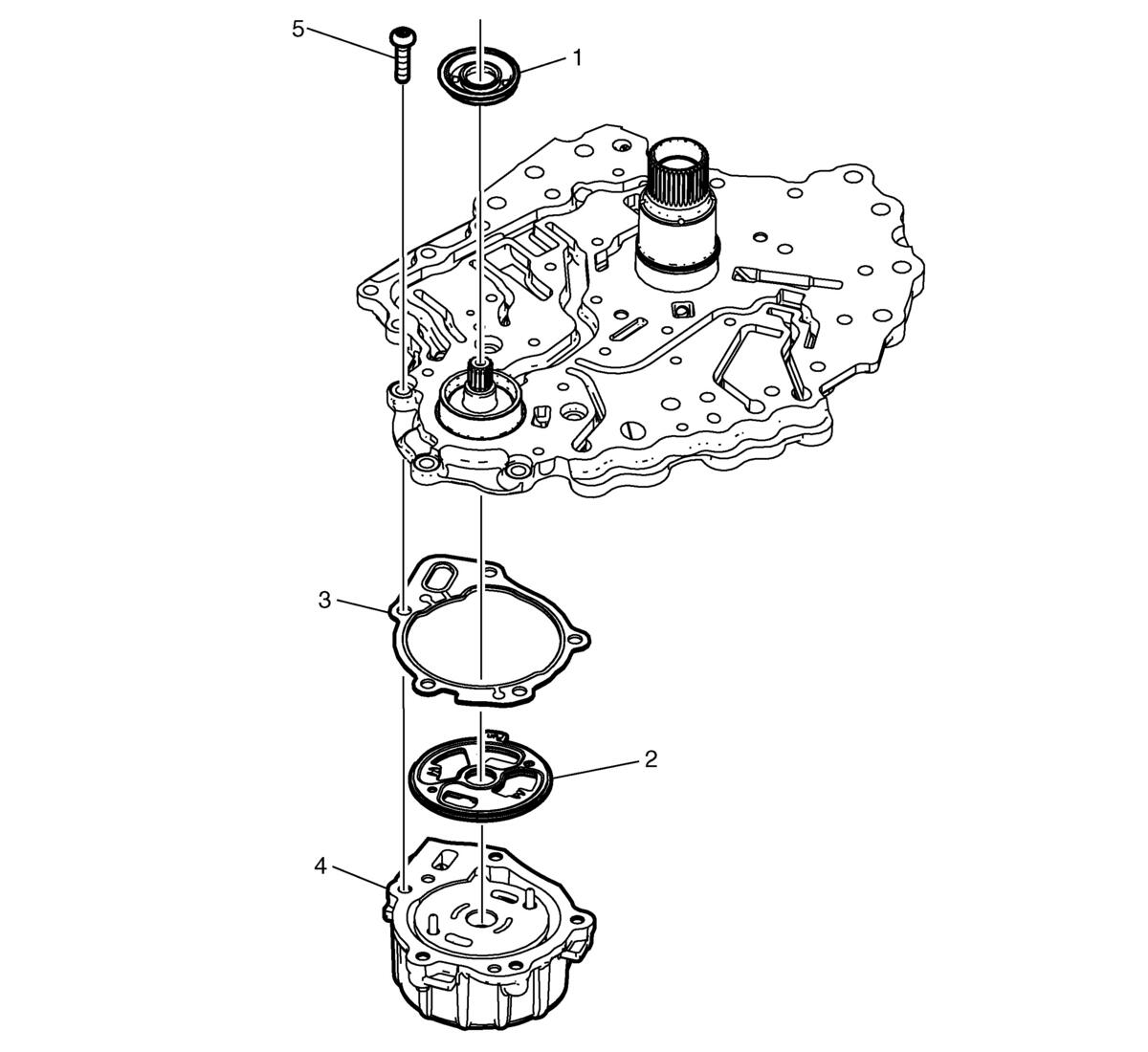

Fig 1: Exploded View Of Automatic Transmission Fluid Pump Cover Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Automatic Transmission Fluid Pump Seal
2	Automatic Transmission Fluid Pump Pressure Plate Seal NOTE: The 1st and 2nd design automatic transmission fluid pump pressure plate seals are not interchangeable. Install a NEW seal.
3	Automatic Transmission Fluid Pump Gasket NOTE: Install a NEW gasket.
4	Automatic Transmission Fluid Pump Assembly
5	Automatic Transmission Fluid Pump Cover Bolt M6 x 25 (Qty: 5) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
