Automatic Transmission Fluid Pump Assembly Assemble
WARNING: This page is about a different variant/trim than selected.

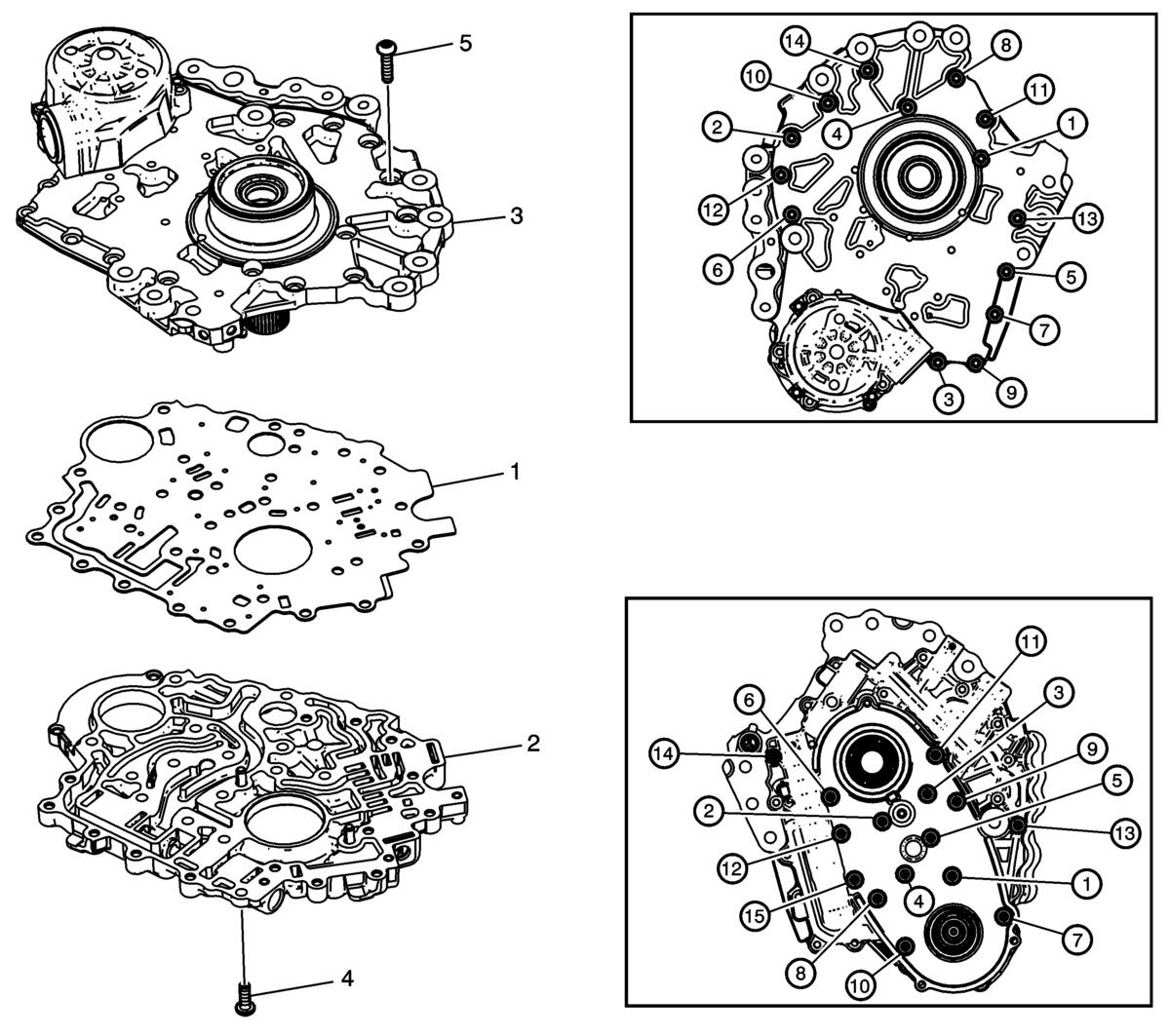

Fig 1: Exploded View Of Automatic Transmission Fluid Pump Assembly Components (With Tightening Sequence)
Automatic Transmission Fluid Pump Assembly Assemble
| Callout | Component Name |
|---|---|
| 1 | Automatic Transmission Fluid Pump Plate |
| 2 | Automatic Transmission Fluid Pump Body |
| 3 | Automatic Transmission Fluid Pump Cover |
| 4 | Automatic Transmission Fluid Pump Bolts M6 x 18 (Qty: 15)
CAUTION:
Refer to Fastener Caution . Procedure Tighten the bolts in the sequence shown. Tighten 10 N.m (89 lb in) |
| 5 | Automatic Transmission Fluid Pump Cover Bolts M6 x 25 (Qty: 14) Procedure Tighten the bolts in the sequence shown. Tighten 10 N.m (89 lb in) |
