Manual Shaft Detent (w/Shift Position Switch) Lever Assembly Removal

WARNING: This page is about a different variant/trim than selected.

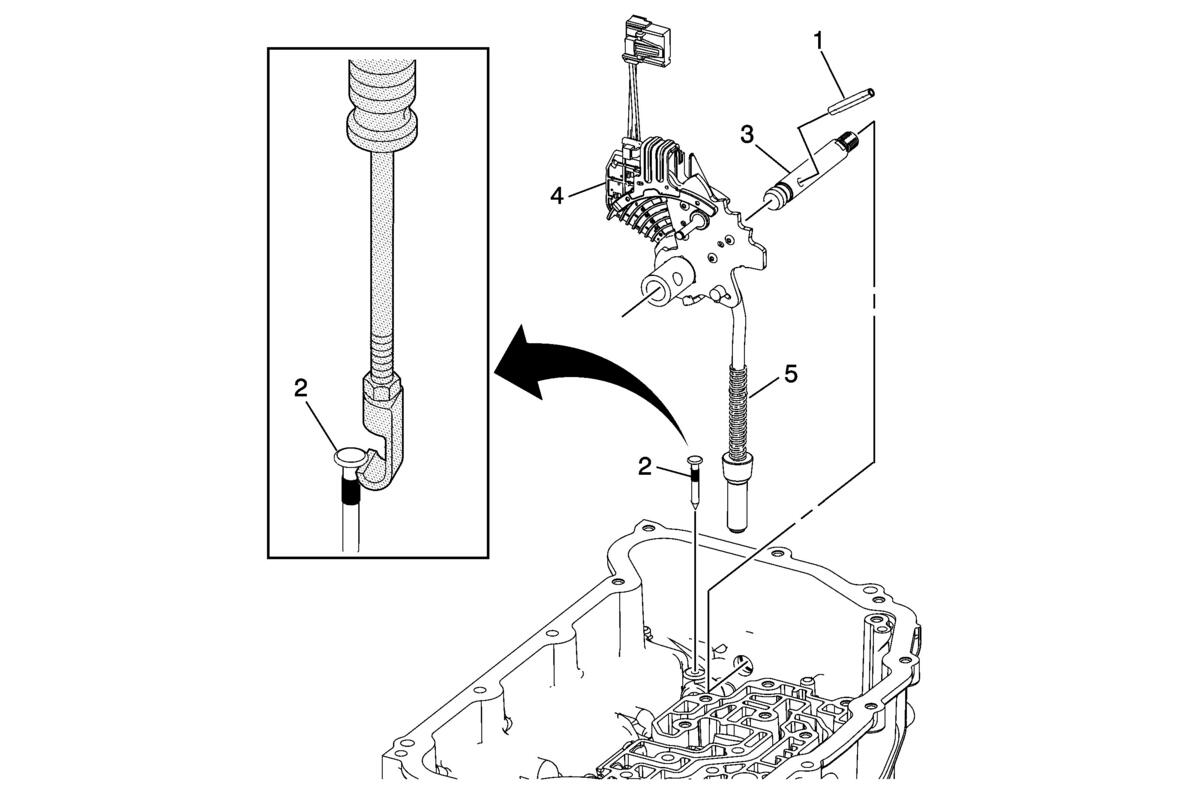

Fig 1: Exploded View Of Manual Shaft Detent (W/Shift Position Switch) Lever Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Manual Shaft Detent Lever Hub Pin NOTE: Use side cutter to remove the pin (1) and discard.
2	Manual Shift Shaft Pin NOTE: Discard the pin. It is not reusable. Special Tools DT-23129 Universal Seal Remover GE-6125-1B Slide Hammer For equivalent regional tools, refer to Special Tools .
3	Manual Shaft
4	Manual Shaft Detent (w/Shift Position Switch) Lever Assembly
5	Park Pawl Actuator Assembly
