Park Pawl Actuator Guide Installation

WARNING: This page is about a different variant/trim than selected.

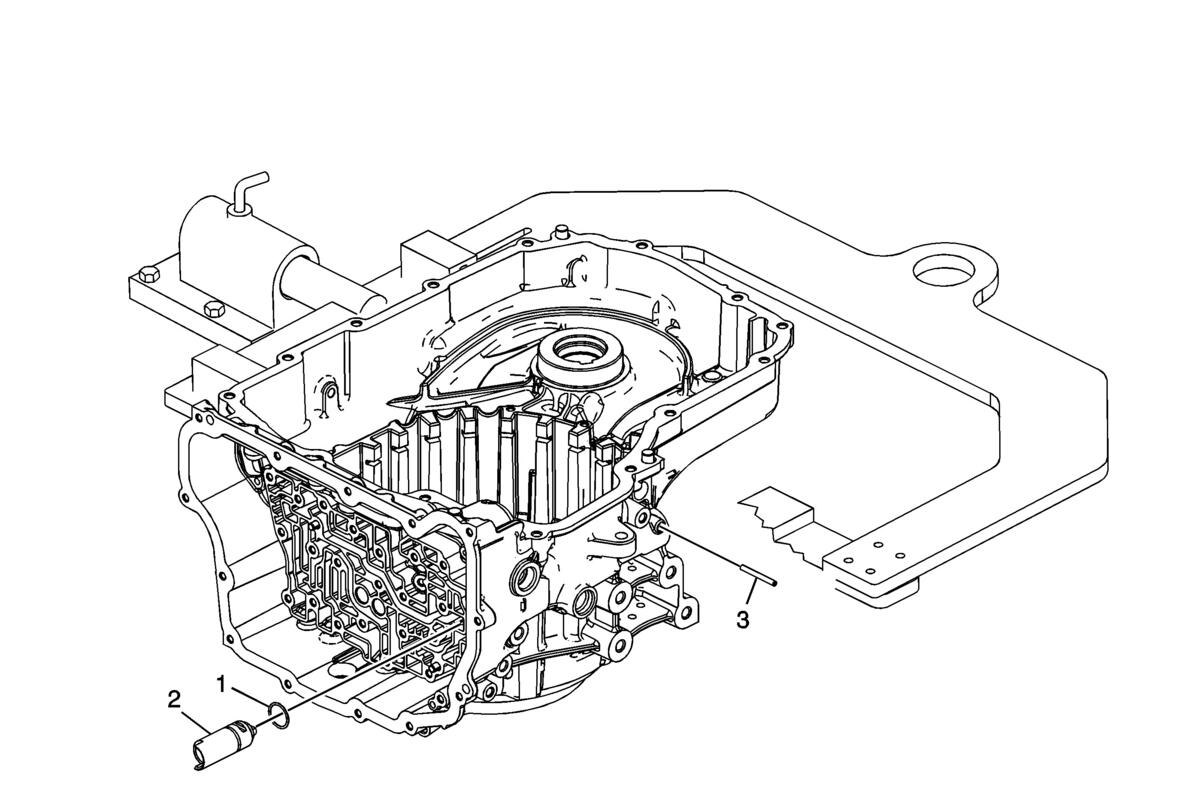

Fig 1: Exploded View Of Park Pawl Actuator Guide Components
GM1891435Courtesy of GENERAL MOTORS COMPANY
Park Pawl Actuator Guide Installation

Callout Component Name
1 Park Pawl Actuator Guide Assembly Seal
2 Park Pawl Actuator Guide Assembly
3 Park Pawl Actuator Guide Pin
CAUTION:

Refer to Fastener Caution .


Procedure
Install the park pawl actuator guide pin to correct height.
Tighten
7.2 mm (0.28 in)
