Low And Reverse And 1-2-3-4 Clutch Housing, Low And Reverse Clutch Assembly, Output Sun Gear, And 2-6 Clutch Plate Disassemble
WARNING: This page is about a different variant/trim than selected.

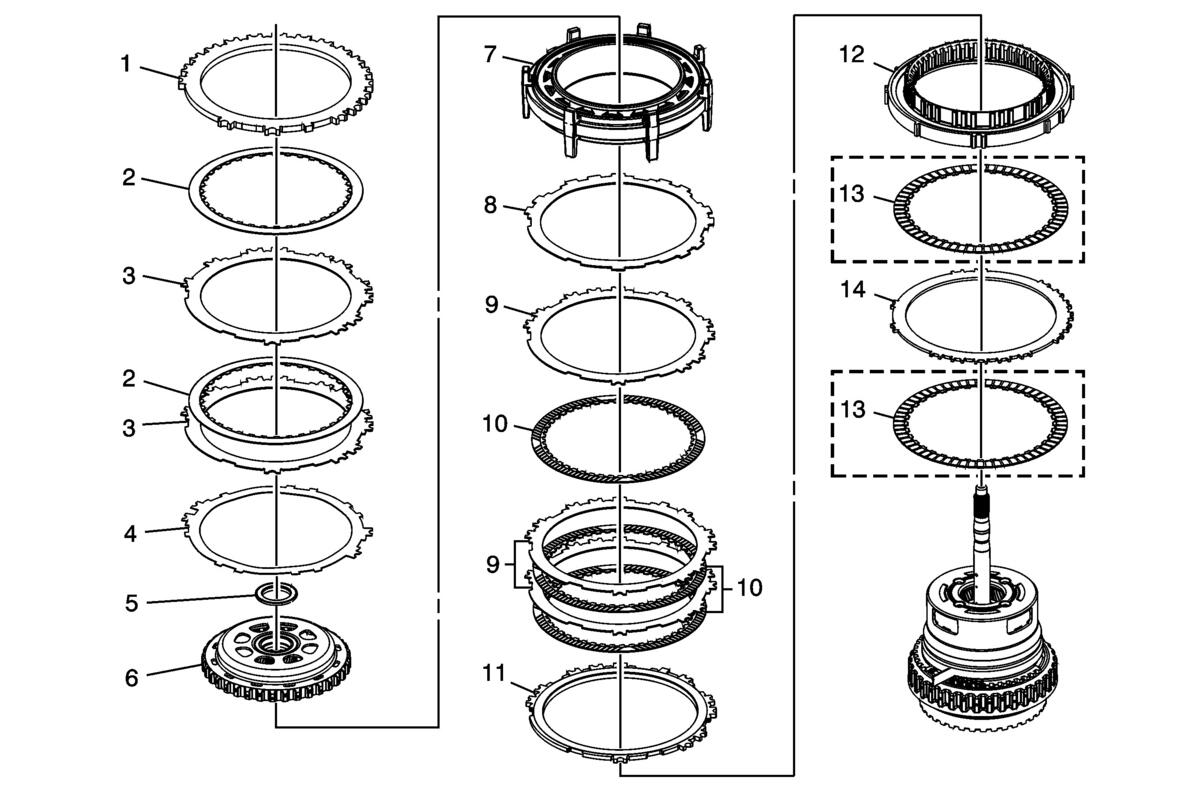

Fig 1: Exploded View Of Low And Reverse And 1-2-3-4 Clutch Housing, Low And Reverse Clutch Assembly, Output Sun Gear, And 2-6 Clutch Plate Components
| Callout | Component Name |
|---|---|
| 1 | 1 - 2 - 3 - 4 Clutch Backing Plate |
| 2 | 1 - 2 - 3 - 4 Clutch Plate Assembly (Qty: 2) |
| 3 | 1 - 2 - 3 - 4 Clutch Plate (Qty: 2) |
| 4 | 1 - 2 - 3 - 4 Clutch Waved Plate |
| 5 | Output Sun Gear Thrust Bearing Assembly
NOTE:
The sun gear thrust bearing may be stuck to the driven sprocket hub. |
| 6 | Output Sun Gear Assembly |
| 7 | Low-Reverse and 1 - 2 - 3 - 4 Clutch Housing Assembly |
| 8 | Low and Reverse Clutch Apply Plate |
| 9 | Low and Reverse Clutch Plate (Qty: 3) |
| 10 | Low and Reverse Clutch Plate Assembly (Qty: 3) |
| 11 | Low and Reverse Clutch Backing Plate |
| 12 | Low and Reverse Clutch Assembly (OWC) |
| 13 | 2 - 6 Clutch Plate Assembly (Qty: 2) - Model Dependent
NOTE:
The number of grooves in the clutch plate friction material varies depending on model. |
| 14 | 2 - 6 Clutch Plate (Qty: 1) |
