Section 13 (Automatic Transmission - 6T50 (M2D) - Description And Operation)
>>
Description And Operation
>>
Neutral - Engine Running (Gen 3)
>>

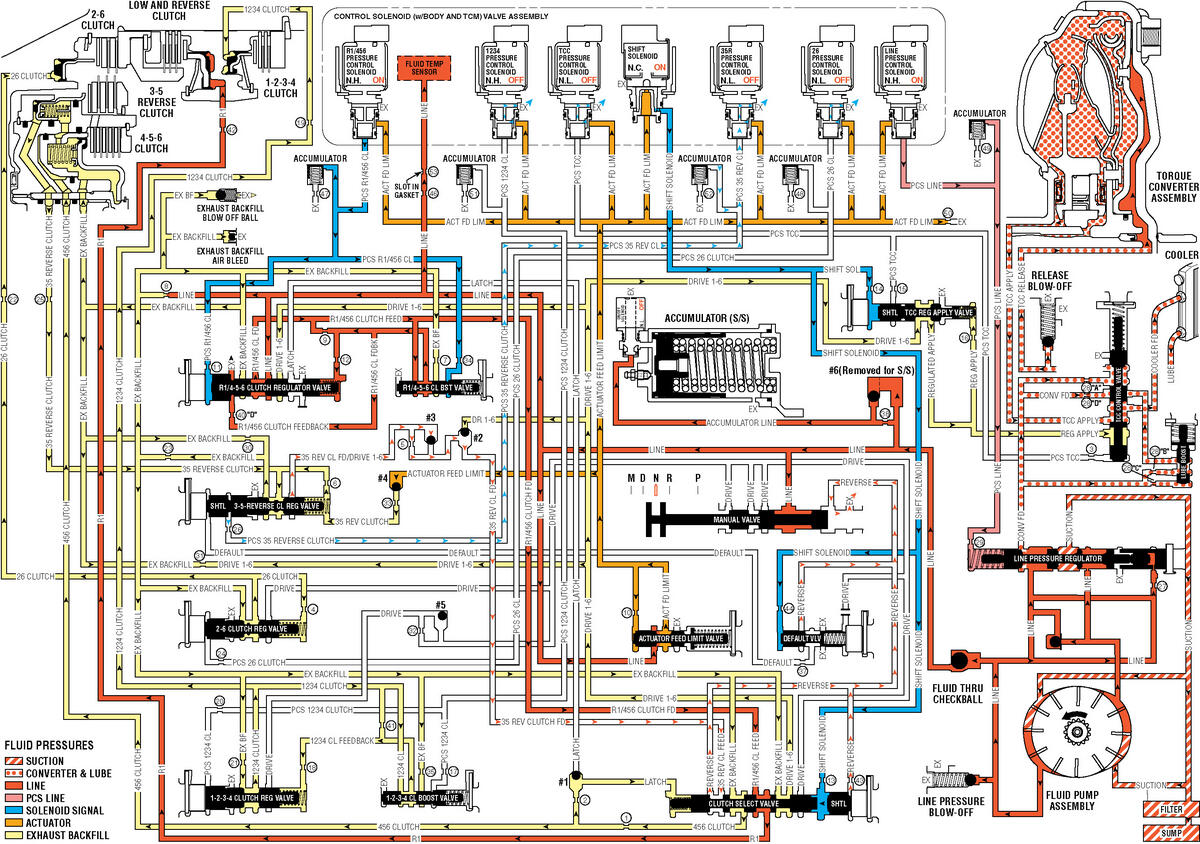

Neutral - Engine Running - Gen 3 - A/T System Hydraulic Diagram
Neutral - Engine Running - Gen 3 - A/T System Hydraulic Diagram
