Fluid Pump Cover - Fluid Pump Side

WARNING: This page is about a different variant/trim than selected.

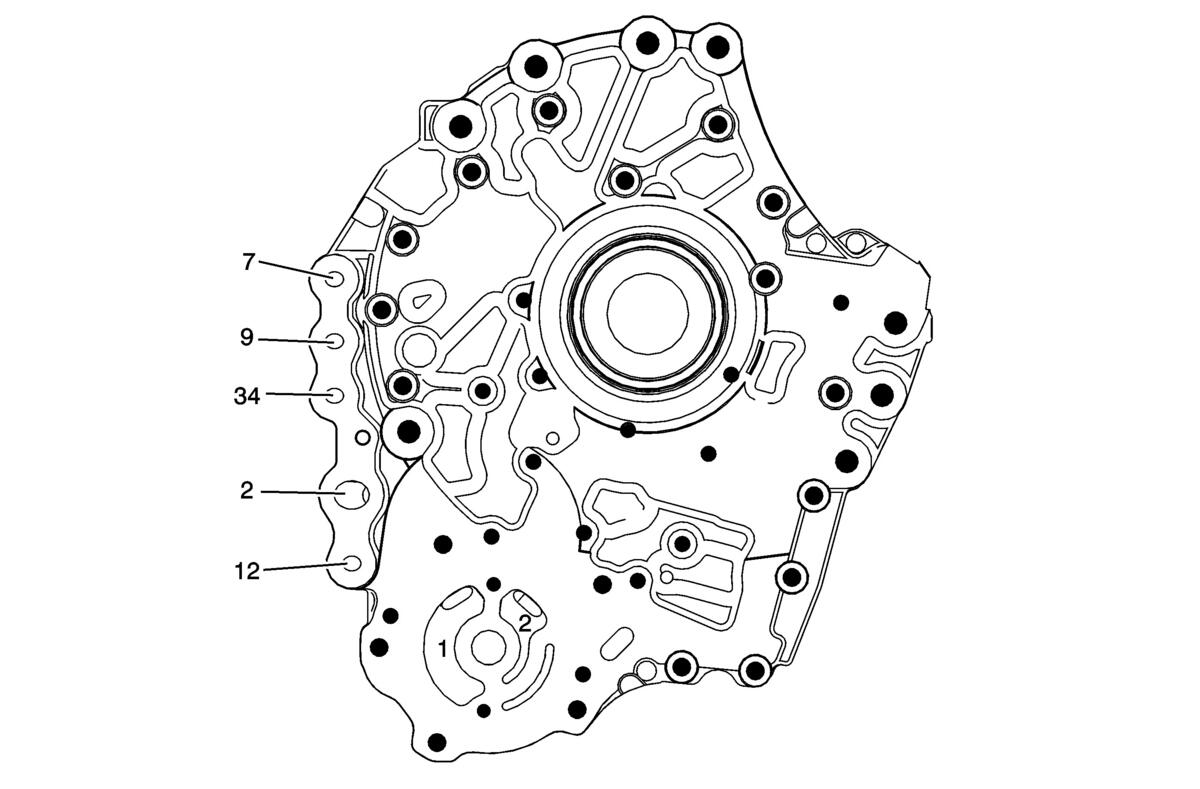

GM3961734

Callout	Component Name
1	Suction
2	Line
7	Cooler Feed
9	Regulated Apply
12	PCS Line
34	PCS TCC
