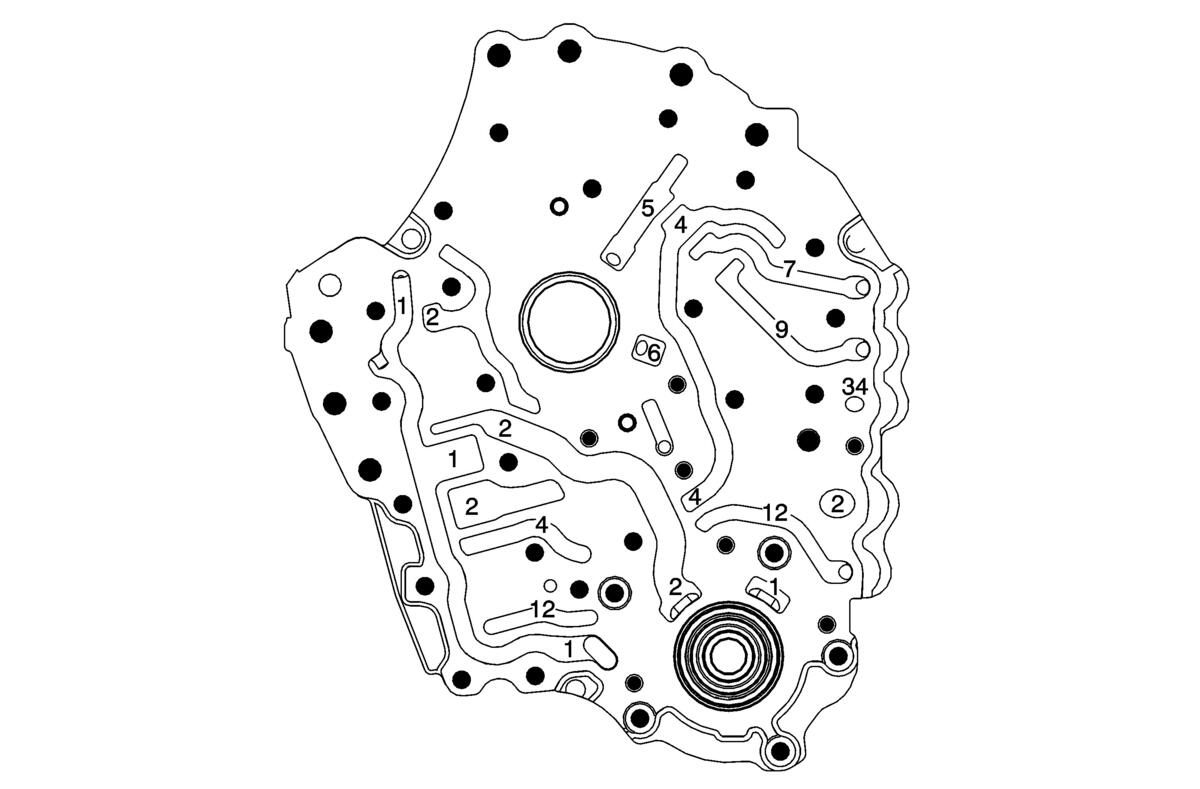

Fluid Pump Cover - Fluid Pump Body Side

WARNING: This page is about a different variant/trim than selected.
GM3961736
Callout Component Name
1 Suction
2 Line
4 Converter Feed
5 TCC Release
6 TCC Apply
7 Cooler Feed
9 Regulated Apply
12 PCS Line
34 PCS TCC
