Section 13 (Automatic Transmission - 6T50 (M2D) - Description And Operation)
>>
Description And Operation
>>
Drive Range, Fifth Gear (Gen 3)
>>

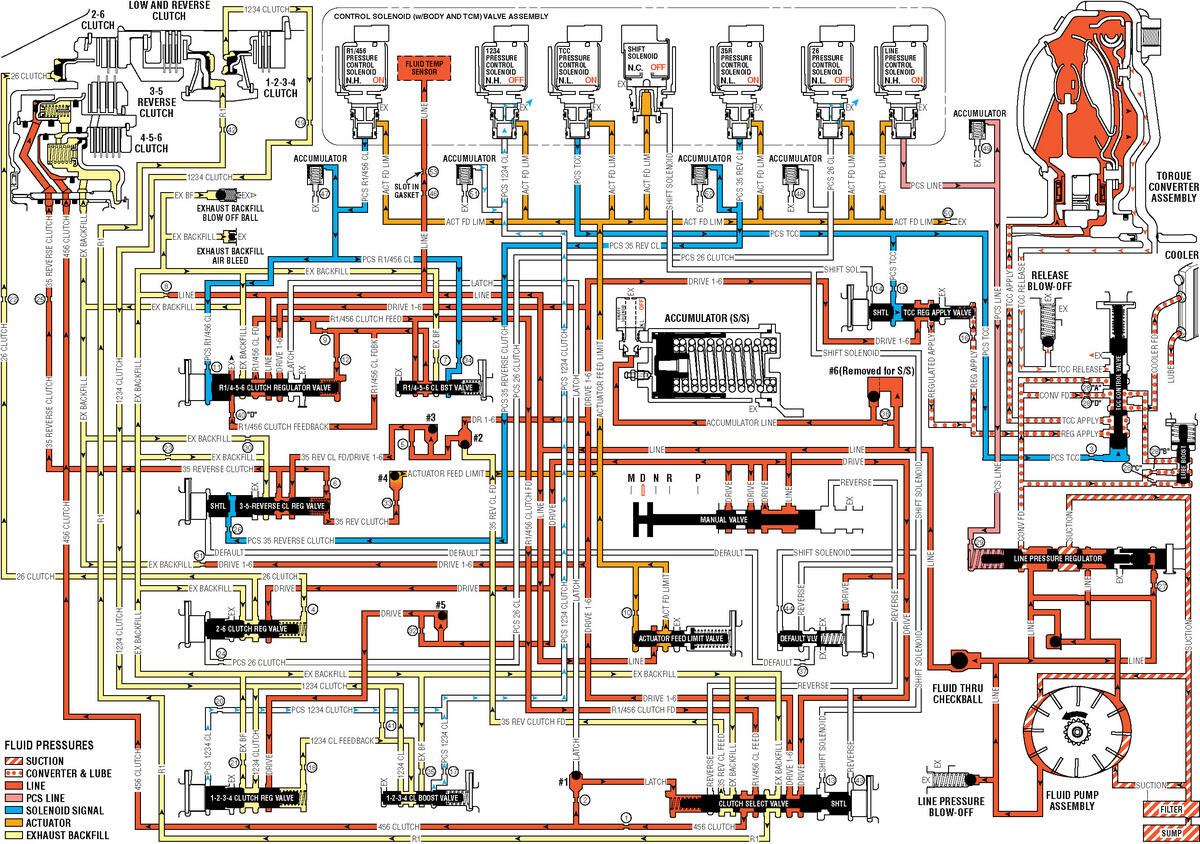

Drive Range, Fifth Gear - Gen 3 - A/T System Hydraulic Diagram
Drive Range, Fifth Gear - Gen 3 - A/T System Hydraulic Diagram
WARNING:
This page is about a different variant/trim than selected.
