Turbocharger Wastegate Regulator Solenoid Valves Disassemble
WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

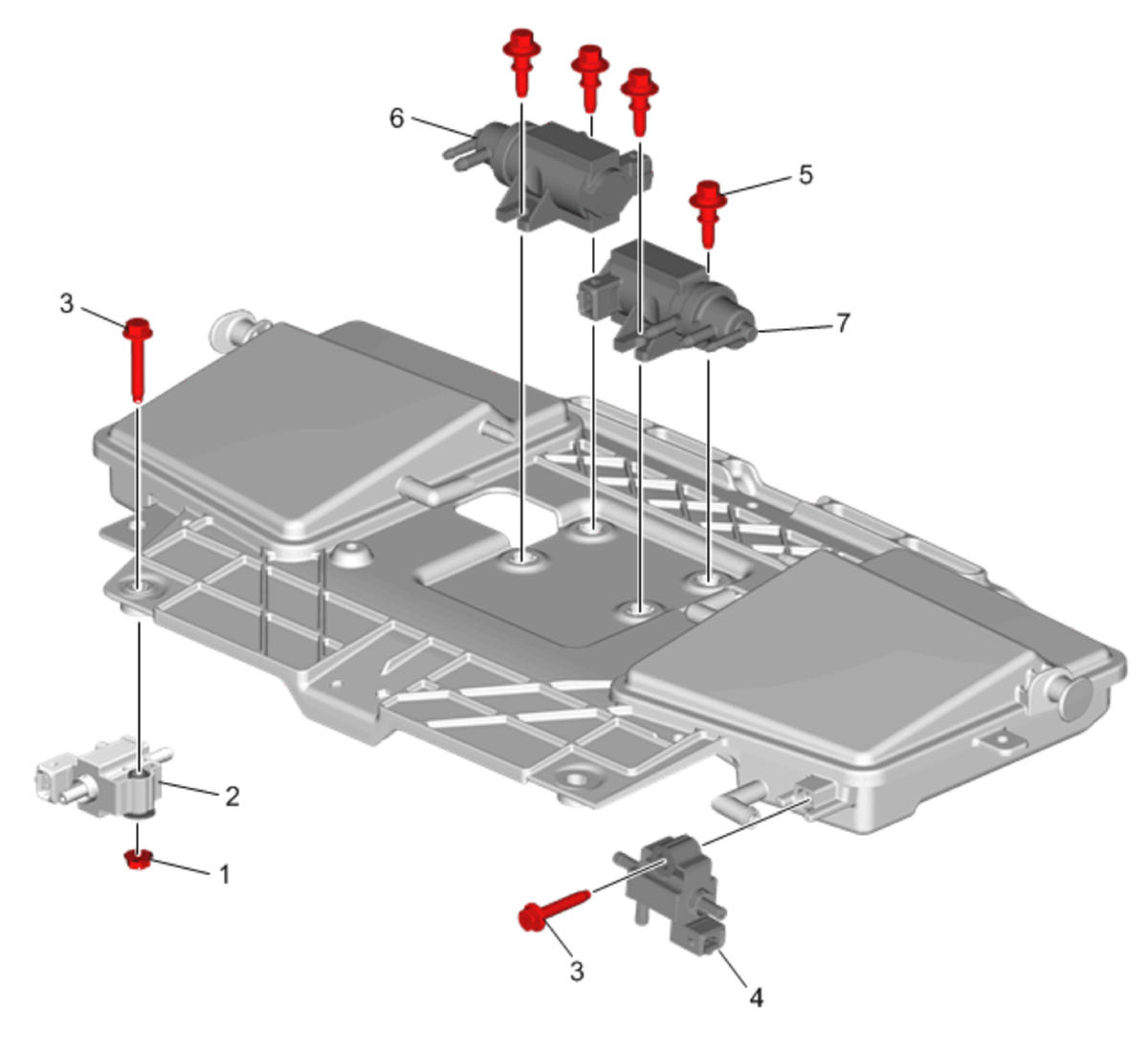

Turbocharger Wastegate Regulator Solenoid Valves Disassemble
| Callout | Component Name |
|---|---|
| 1 | Accelerator Control Cable Bracket Nut |
| 2 | Turbocharger Wastegate Regulator Solenoid Valve |
| 3 | Turbocharger Wastegate Regulator Solenoid Valve Bolt |
| 4 | Turbocharger Wastegate Regulator Solenoid Valve |
| 5 | Turbocharger Wastegate Actuator Vacuum Tank Bolt |
| 6 | Turbocharger Wastegate Regulator Solenoid Valve |
| 7 | Turbocharger Wastegate Regulator Solenoid Valve |
