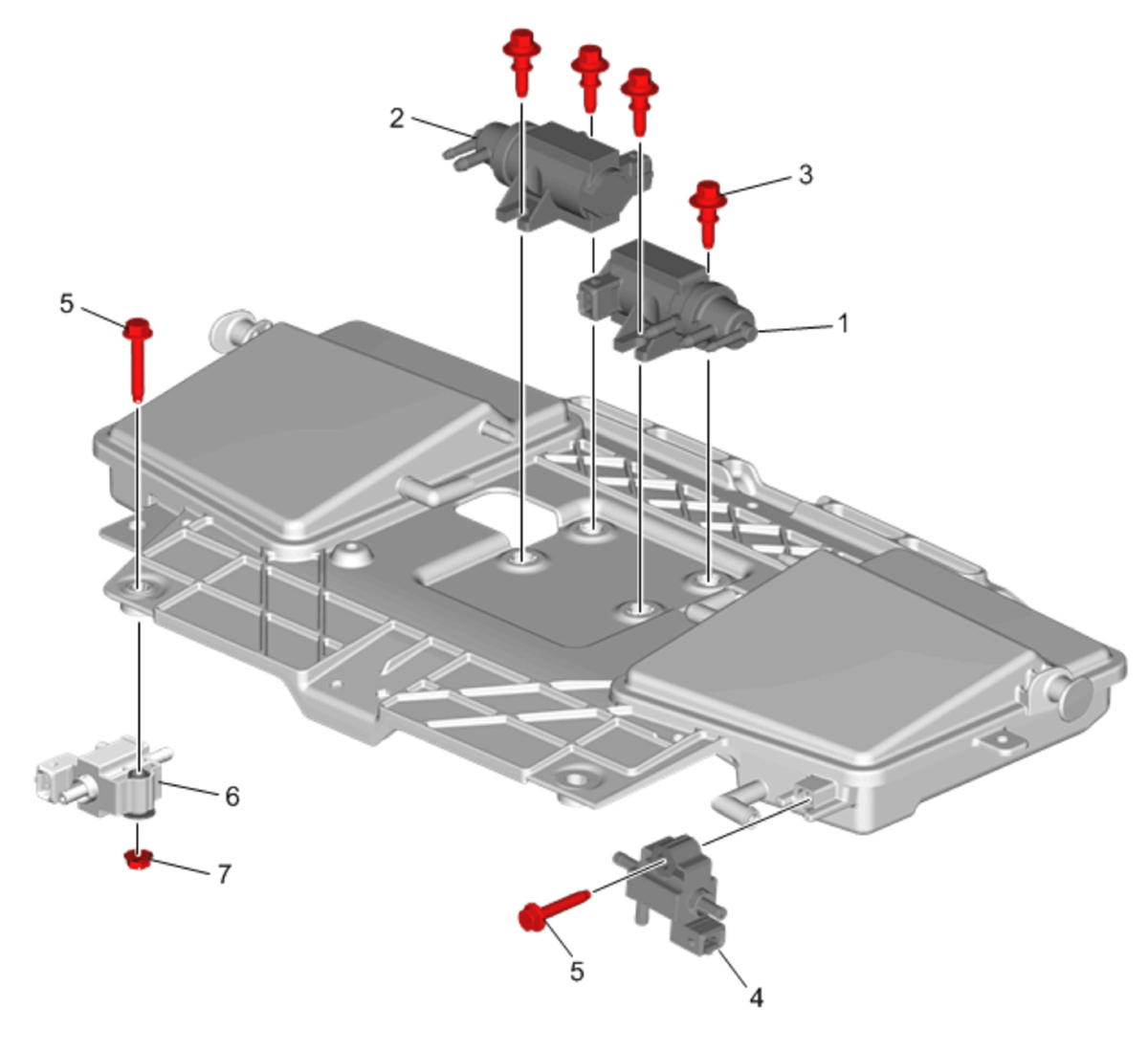

Turbocharger Wastegate Regulator Solenoid Valves Assemble
| Callout | Component Name |
|---|---|
| 1 | Turbocharger Wastegate Regulator Solenoid Valve |
| 2 | Turbocharger Wastegate Regulator Solenoid Valve |
| 3 | Turbocharger Wastegate Actuator Vacuum Tank Bolt
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 4 | Turbocharger Wastegate Regulator Solenoid Valve |
| 5 | Turbocharger Wastegate Regulator Solenoid Valve Bolt Tighten 10 N.m (89 lb in) |
| 6 | Turbocharger Wastegate Regulator Solenoid Valve |
| 7 | Accelerator Control Cable Bracket Nut |
