Turbocharger Oil Feed Pipe Removal

WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

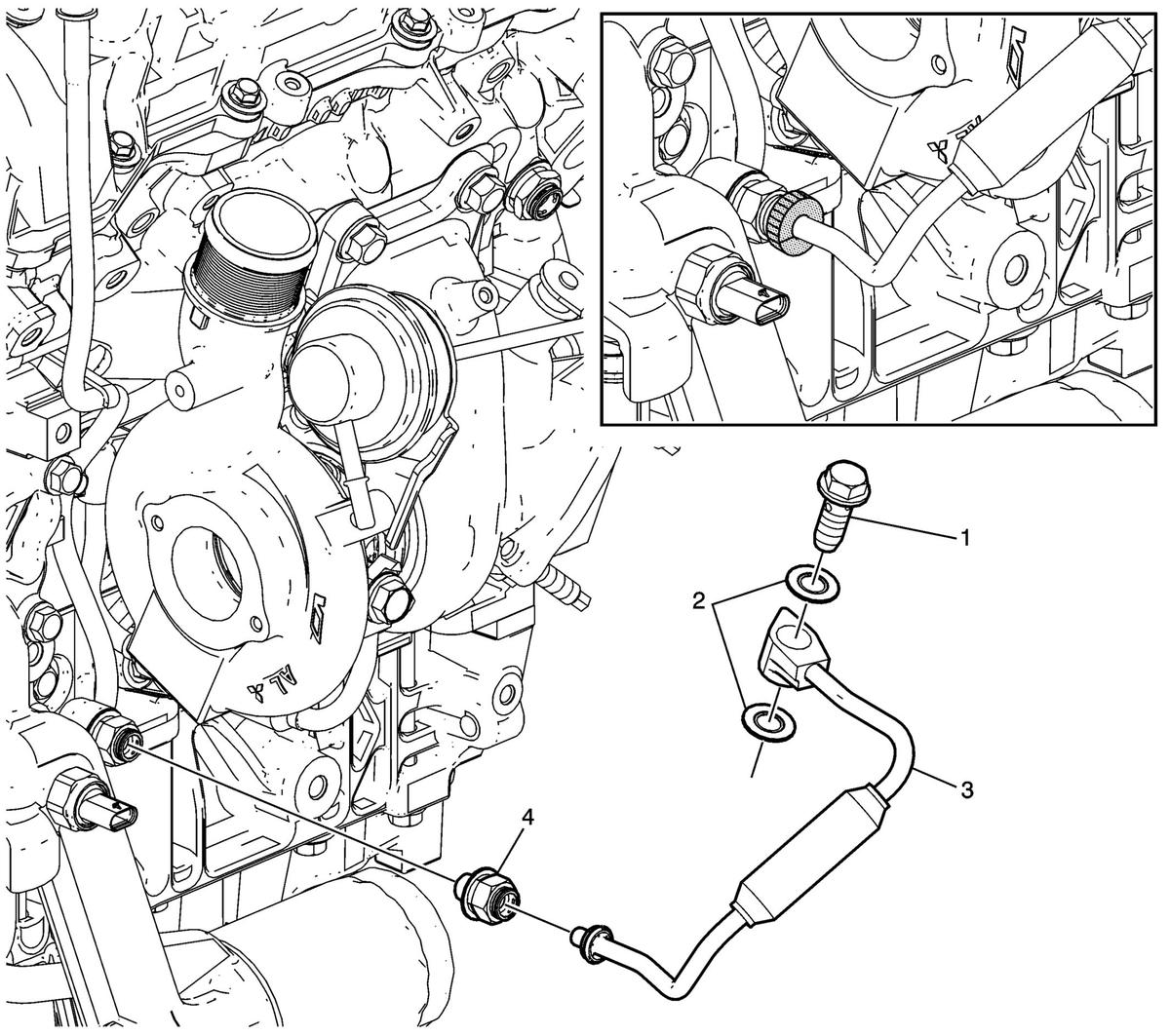

Fig 1: Turbocharger Oil Feed Pipe
GM3239452Courtesy of GENERAL MOTORS COMPANY
Turbocharger Oil Feed Pipe Removal

Callout Component Name
1 Turbocharger Oil Feed Pipe Bolt
2 Turbocharger Oil Feed Pipe Gaskets
NOTE:

Discard gaskets, they are not reusable.
3 Turbocharger Oil Feed Pipe

Procedure

  1. Use 3/8" Jiffy-tite® quick disconnect tool to remove the coolant return pipe.
  2. Refer to Turbocharger Cleaning and Inspection
4 Turbocharger Oil Feed Pipe Fitting
NOTE:

Discard fitting, they are not reusable.
