Inspection Procedure Lower Oil Pan
WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

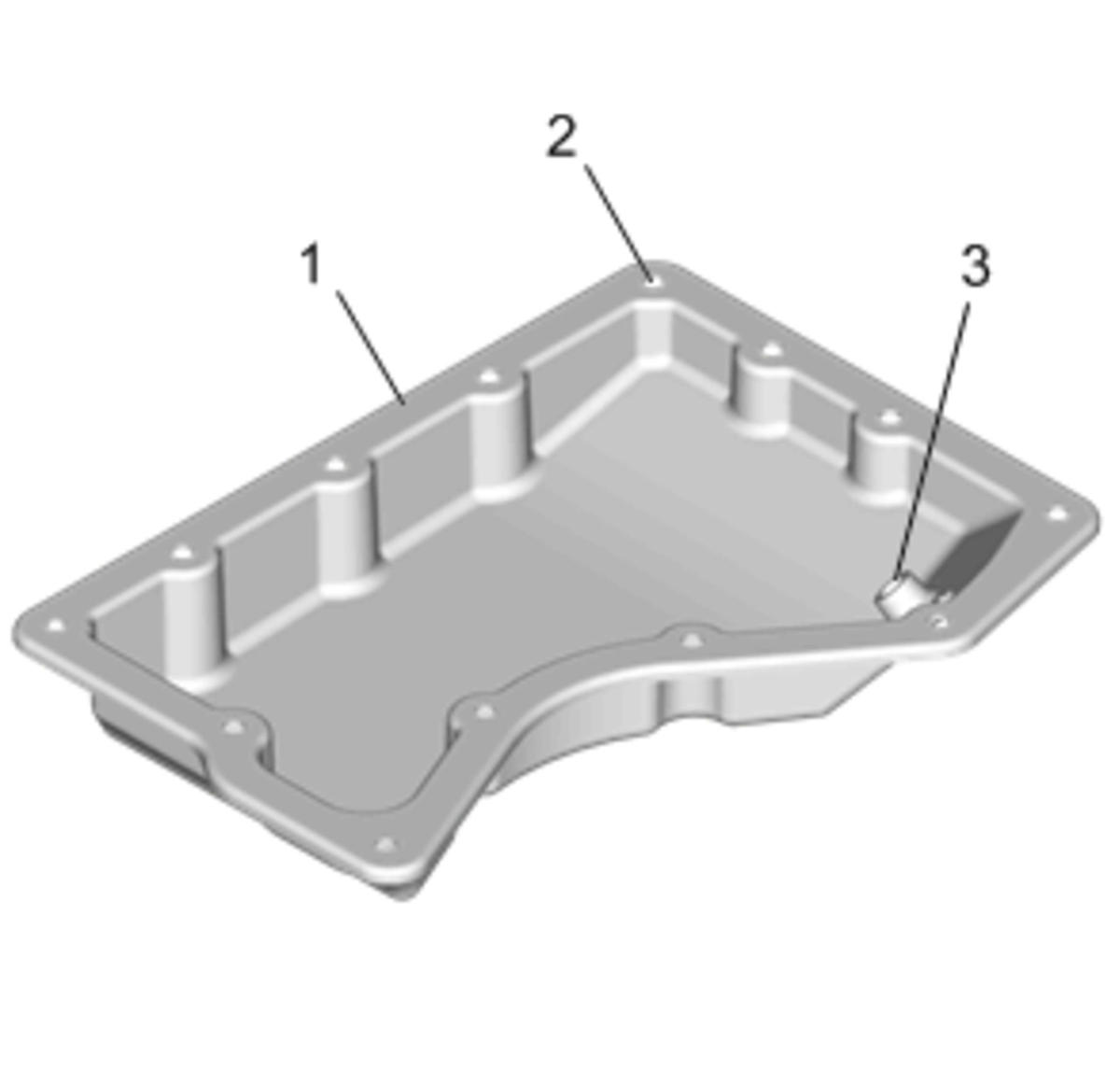

- Inspect the oil pan for the following conditions:
- Gouges or damage to the lower oil pan sealing surfaces (1)
- Damage to the lower oil pan mounting holes (2)
- Damage to the drain plug or drain plug hole (3)
- Repair or replace the lower oil pan and/or oil pan components as necessary.
