Crankshaft Oil Pan Drain Plug and Oil Deflector Installation
WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

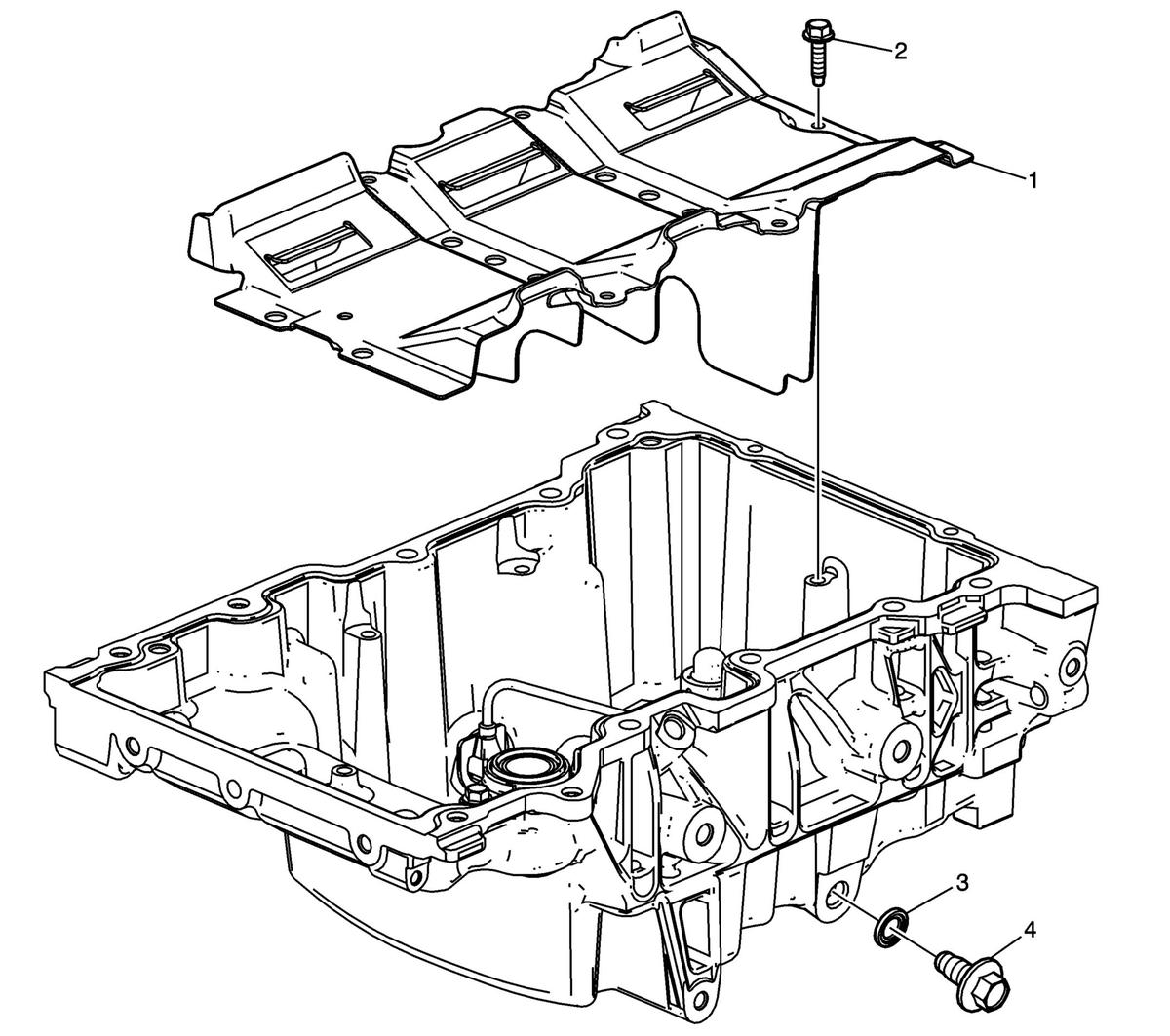

Courtesy of GENERAL MOTORS COMPANY Crankshaft Oil Pan Drain Plug and Oil Deflector Installation
| Callout |
Component Name |
| 1 |
Crankshaft Oil Deflector |
| 2 |
Crankshaft Oil Deflector Bolts
Tighten
10 N.m (89 lb in) |
| 3 |
Oil Pan Drain Plug Seal
NOTE:
Install a NEW seal.
|
| 4 |
Oil Pan Drain Plug
Tighten
25 N.m (18 lb ft) |
