Engine Coolant Thermostat Housing Removal (LGX)
WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

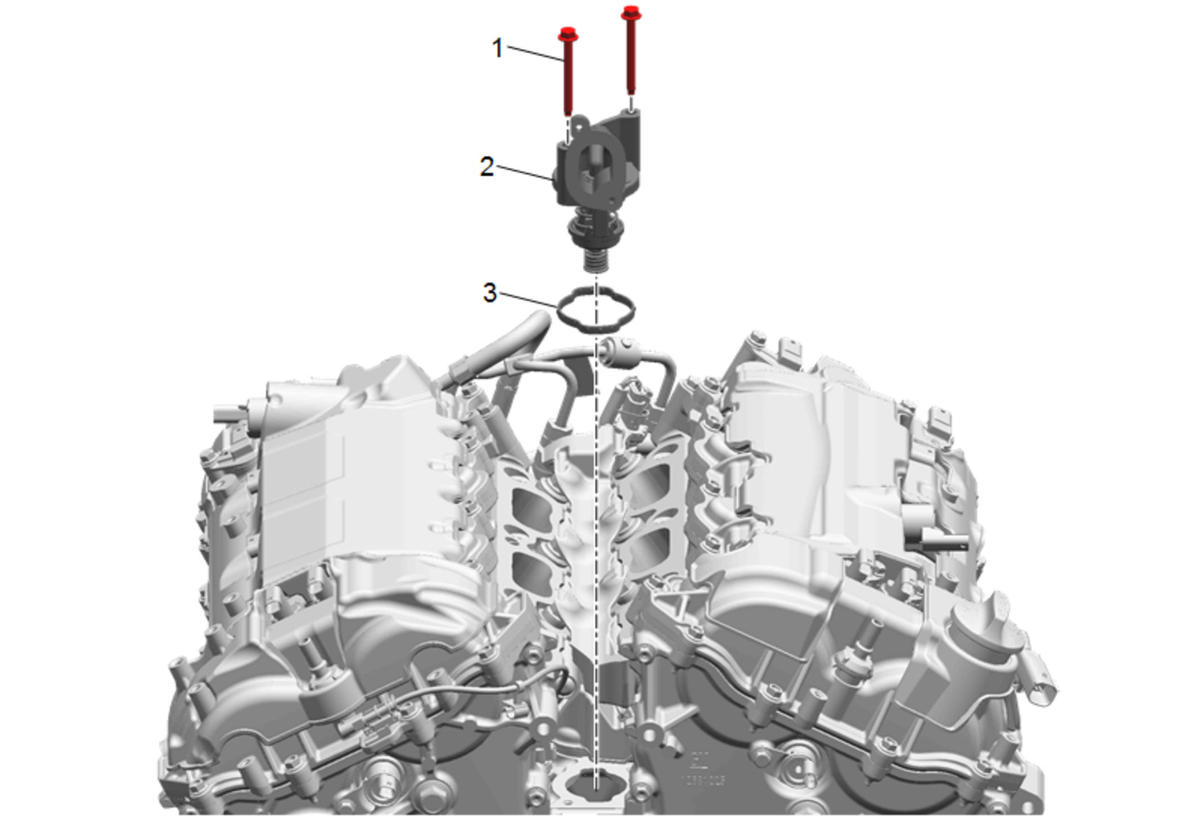

| Callout |
Component Name |
| 1 |
Engine Coolant Thermostat Housing Bolt |
| 2 |
Engine Coolant Thermostat Housing |
| 3 |
Engine Coolant Thermostat Gasket
NOTE:
Remove and DISCARD the gasket.
|
| 4 |
Engine Coolant Temperature Sensor Wire |
| 5 |
Engine Coolant Temperature Sensor |
