Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (LF4 - Intake Manifold to Camshaft Cover)
WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement (LF4) . |
|

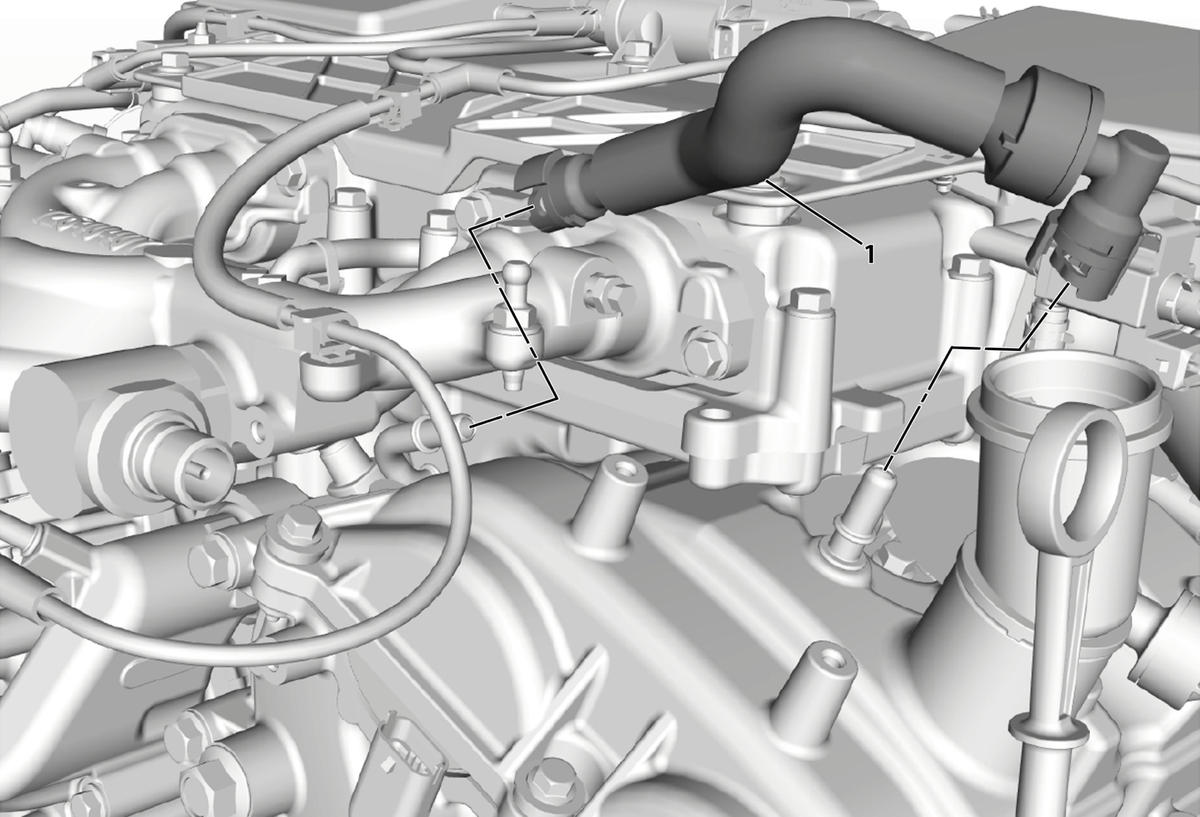

| 1 | Positive Crankcase Ventilation Tube Procedure Disconnect the PCV tube from the intake manifold and the camshaft cover. Refer to Plastic Collar Quick Connect Fitting Service . |
