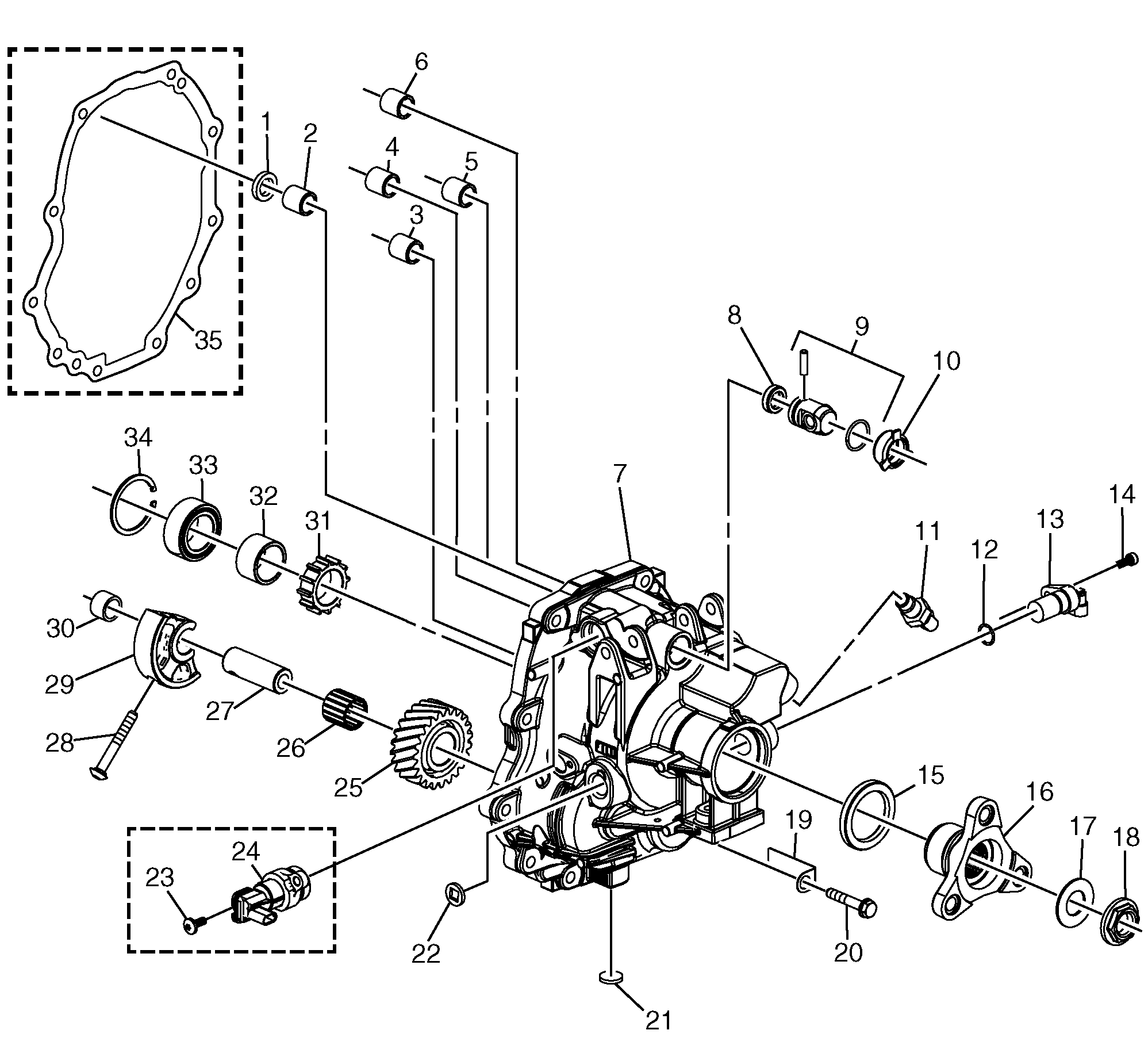

Transmission Extension Assembly
WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Shift Control Spacer |
| 2 | Shift Shaft Bearing Assembly |
| 3 | Shift Shaft Bearing Assembly |
| 4 | Shift Shaft Bearing Assembly |
| 5 | Shift Shaft Bearing Assembly |
| 6 | Shift Shaft Bearing Assembly |
| 7 | Transmission Extension Assembly |
| 8 | Manual Transmission Control Lever Seal |
| 9 | Manual Transmission Shift Lever Shaft Joint Assembly |
| 10 | Manual Transmission Control Shaft Boot |
| 11 | Reverse Sensor |
| 12 | Vehicle Speed Sensor Seal (O-ring) |
| 13 | Manual Transmission Output Speed Sensor Assembly |
| 14 | Transmission Speed Sensor Bolt/Screw |
| 15 | Propeller Shaft Oil Seal |
| 16 | Propeller Shaft Transmission Yoke |
| 17 | Propeller Shaft Transmission Flange Washer |
| 18 | Propeller Shaft Transmission Yoke Nut |
| 19 | Transmission Identification Tag |
| 20 | Extension Housing Bolt/Screw |
| 21 | Transmission Oil Drain Plug |
| 22 | Transmission Oil Fill Plug |
| 23 | Neutral Position Sensor Bolt - model dependant |
| 24 | Neutral Position Sensor - model dependant |
| 25 | Reverse Idler Gear - not serviced - POA |
| 26 | Reverse Idler Gear Bearing Assembly - not serviced - POA |
| 27 | Reverse Idler Gear Shaft - not serviced - POA |
| 28 | Reverse Idler Gear Shaft Bolt - not serviced - POA |
| 29 | Reverse Idler Gear Shaft Support - not serviced - POA |
| 30 | Counter Gear Rear Bearing Inner Race |
| 31 | Vehicle Speed Sensor Reluctor Wheel |
| 32 | Spacer |
| 33 | Main Shaft Rear Bearing Assembly |
| 34 | Main Shaft Rear Bearing Retainer |
| 35 | Extension Housing Gasket - Model Dependent |
