Section 85 (Manual Transmission - TREMEC 6-Speed (Mg9 M3L))
>>
Schematic Wiring Diagrams
>>
Manual Transmission Wiring Schematics (MG9)
>>
Manual Transmission (MG9)
Manual Transmission (MG9)
WARNING:
This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

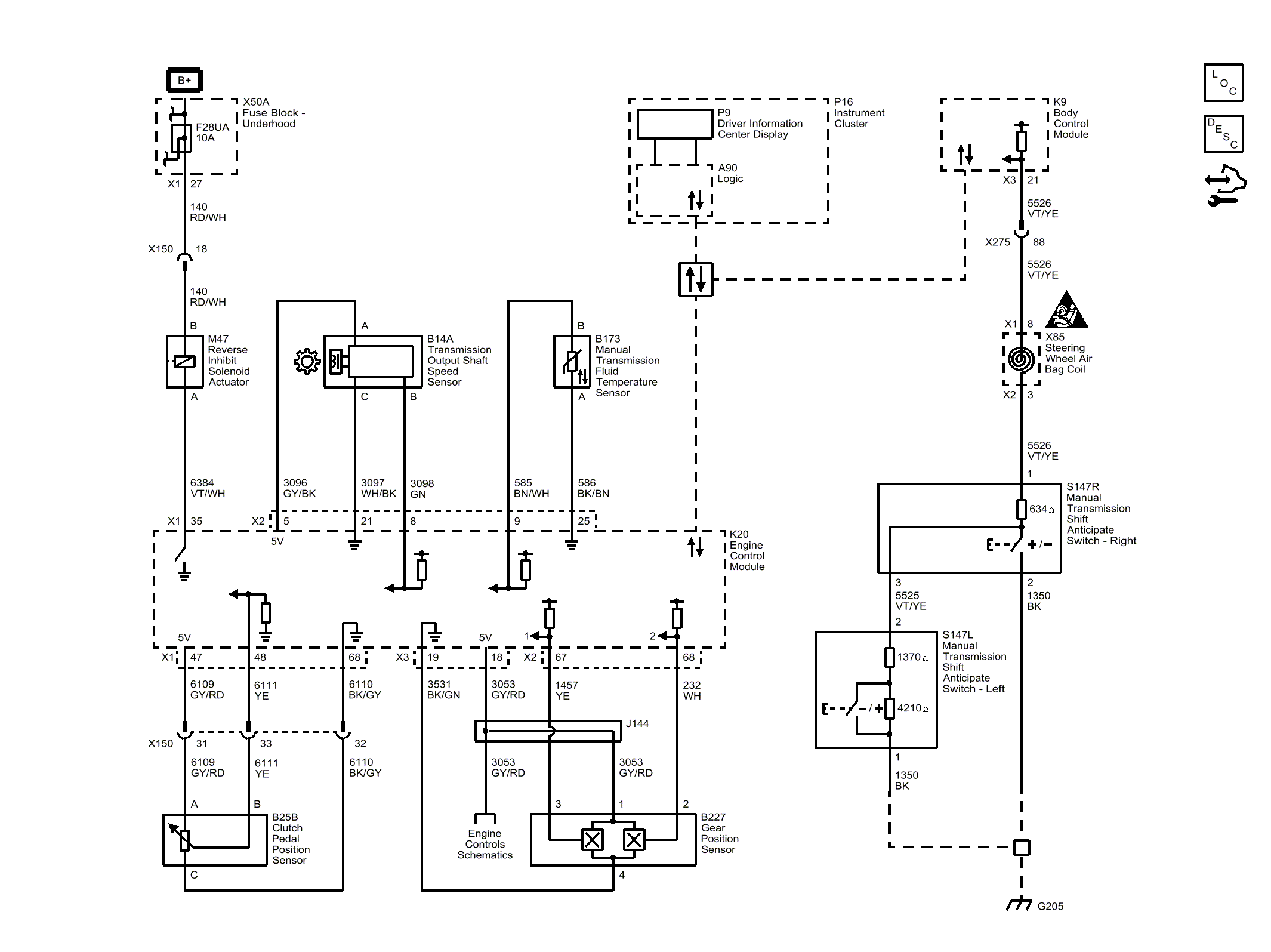

Fig 1: Manual Transmission (MG9)
Courtesy of GENERAL MOTORS COMPANY
