Inverter Lever Install

WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Clutch Housing Bolts
    GM2776826Courtesy of GENERAL MOTORS COMPANY
  1. Temporarily remove the clutch housing bolts (1).
    2. Fig 2: Clutch Housing Assembly
    GM2776838Courtesy of GENERAL MOTORS COMPANY
  2. Temporarily remove the clutch housing assembly (1).
    3. Fig 3: Manual Transmission Selector Lever
    GM2776843Courtesy of GENERAL MOTORS COMPANY
  3. Install the manual transmission selector lever (1).
    4. Fig 4: Manual Transmission Selector Lever Pivot Pin
    GM2776841Courtesy of GENERAL MOTORS COMPANY
  4. Install the manual transmission selector lever pivot pin (1). Tighten to 41 N.m (30 lb ft).
    5. Fig 5: Manual Transmission Shift Lever Retainer
    GM2776839Courtesy of GENERAL MOTORS COMPANY
  5. Install the manual transmission shift lever retainer (1).
    6. Fig 6: Clutch Housing Bead Sealant Application Area
    GM2910479Courtesy of GENERAL MOTORS COMPANY
  6. Apply a 1.7 mm (0.07 in) bead of RTV sealant (1) to the clutch housing. Adhesives, Fluids, Lubricants, and Sealers (MG9) Adhesives, Fluids, Lubricants, and Sealers (M3L)
    7. Fig 7: Clutch Housing Assembly
    GM2776838Courtesy of GENERAL MOTORS COMPANY
  7. Install the clutch housing assembly (1)
    8. Fig 8: Clutch Housing Bolts
    GM2776826Courtesy of GENERAL MOTORS COMPANY
  8. Install the clutch housing bolts (1). Tighten to 33 N.m (24 lb ft).


    Fig 1: Clutch Housing Bolts
    GM2776826Courtesy of GENERAL MOTORS COMPANY
  1. Temporarily remove the clutch housing bolts (1).
    2. Fig 2: Clutch Housing Assembly
    GM2776838Courtesy of GENERAL MOTORS COMPANY
  2. Temporarily remove the clutch housing assembly (1).
    3. Fig 3: Manual Transmission Selector Lever
    GM2776843Courtesy of GENERAL MOTORS COMPANY
  3. Install the manual transmission selector lever (1).
    4. Fig 4: Manual Transmission Selector Lever Pivot Pin
    GM2776841Courtesy of GENERAL MOTORS COMPANY
  4. Install the manual transmission selector lever pivot pin (1). Tighten to 41 N.m (30 lb ft).
    5. Fig 5: Manual Transmission Shift Lever Retainer
    GM2776839Courtesy of GENERAL MOTORS COMPANY
  5. Install the manual transmission shift lever retainer (1).
    6. Fig 6: Clutch Housing Bead Sealant Application Area
    GM2910479Courtesy of GENERAL MOTORS COMPANY
  6. Apply a 1.7 mm (0.07 in) bead of RTV sealant (1) to the clutch housing. Adhesives, Fluids, Lubricants, and Sealers (MG9) Adhesives, Fluids, Lubricants, and Sealers (M3L)
    7. Fig 7: Clutch Housing Assembly
    GM2776838Courtesy of GENERAL MOTORS COMPANY
  7. Install the clutch housing assembly (1)
    8. Fig 8: Clutch Housing Bolts
    GM2776826Courtesy of GENERAL MOTORS COMPANY
  8. Install the clutch housing bolts (1). Tighten to 33 N.m (24 lb ft).

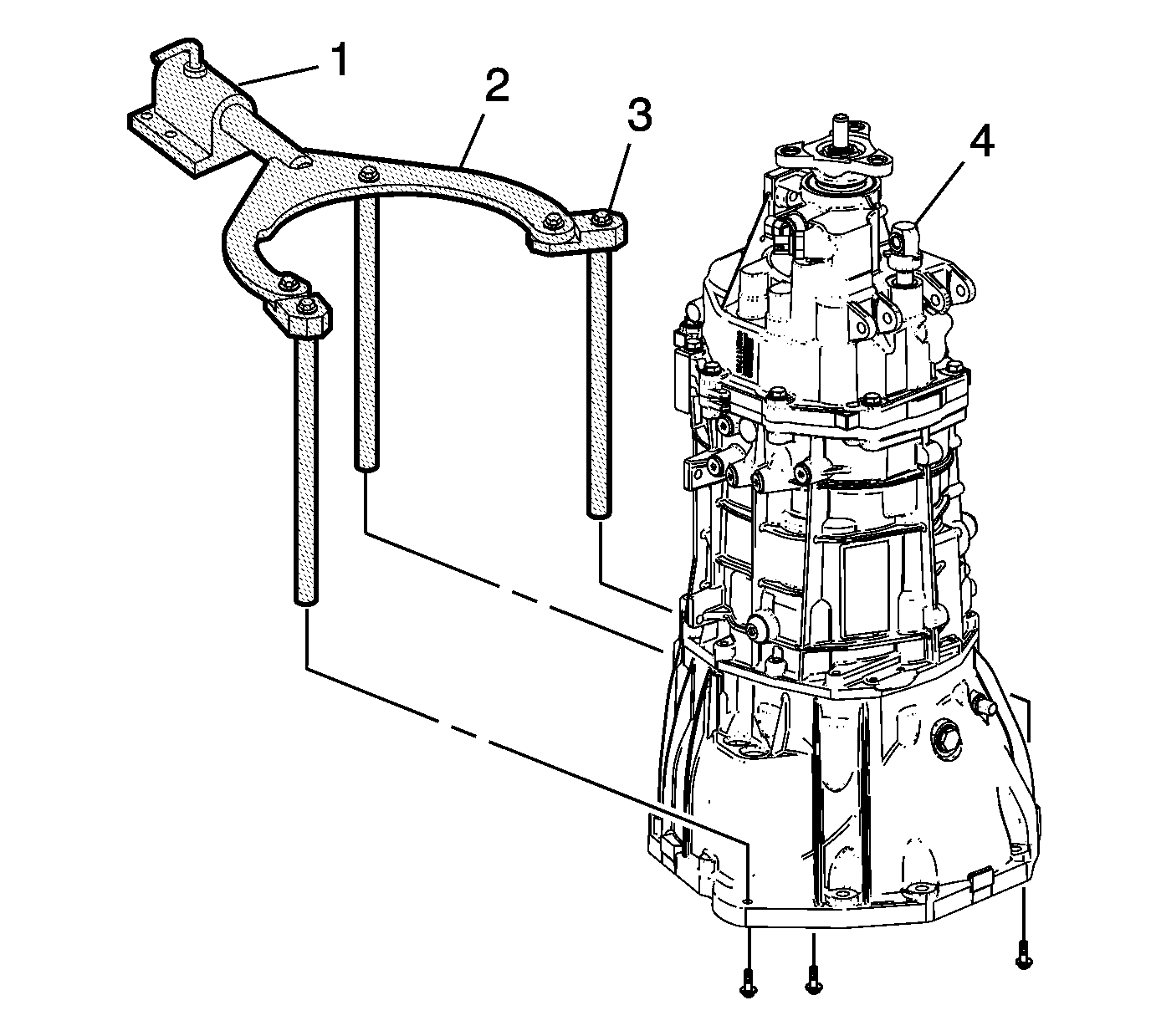

    9. Fig 9: Transmission Holding Flange, Adapter & Fixture
    GM2776798Courtesy of GENERAL MOTORS COMPANY
  9. Remove the transmission (4) from the DT-47678  flange (2) and the DT-47678-10  flange adapter (3).
