Accessory Power and Retained Accessory Power Relay

WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

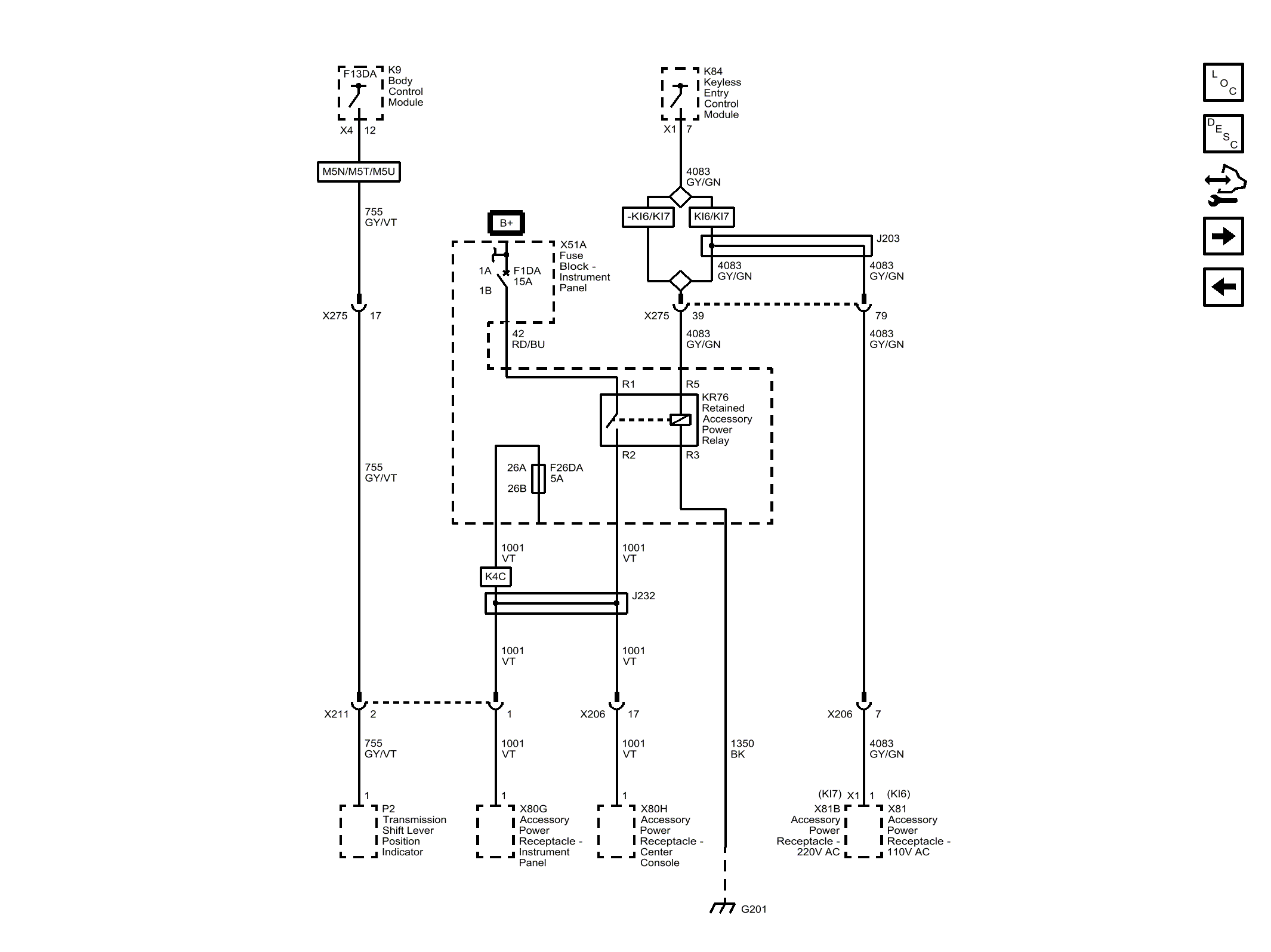

Fig 1: Accessory Power and Retained Accessory Power Relay
GM4054915Courtesy of GENERAL MOTORS COMPANY
