Installation Procedure

WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install air conditioning compressor hose to the vehicle
    2. Fig 1: Air Conditioning Compressor Hose
    GM4032457Courtesy of GENERAL MOTORS COMPANY
  2. Install NEW sealing washers. Air Conditioning System Seal Replacement
  3. Air Conditioning Compressor Hose - Install
    4. CAUTION:

    Refer to Fastener Caution .

  4. Air Conditioning Compressor Hose Bolt - Install and tighten 22 N.m (16 lb ft)
    5. Fig 2: Air Conditioning Compressor Hose Nut
    GM4032458Courtesy of GENERAL MOTORS COMPANY
  5. Install NEW sealing washers.
  6. Air Conditioning Compressor Hose - Install
  7. Air Conditioning Compressor Hose Nut - Install and tighten 22 N.m (16 lb ft)

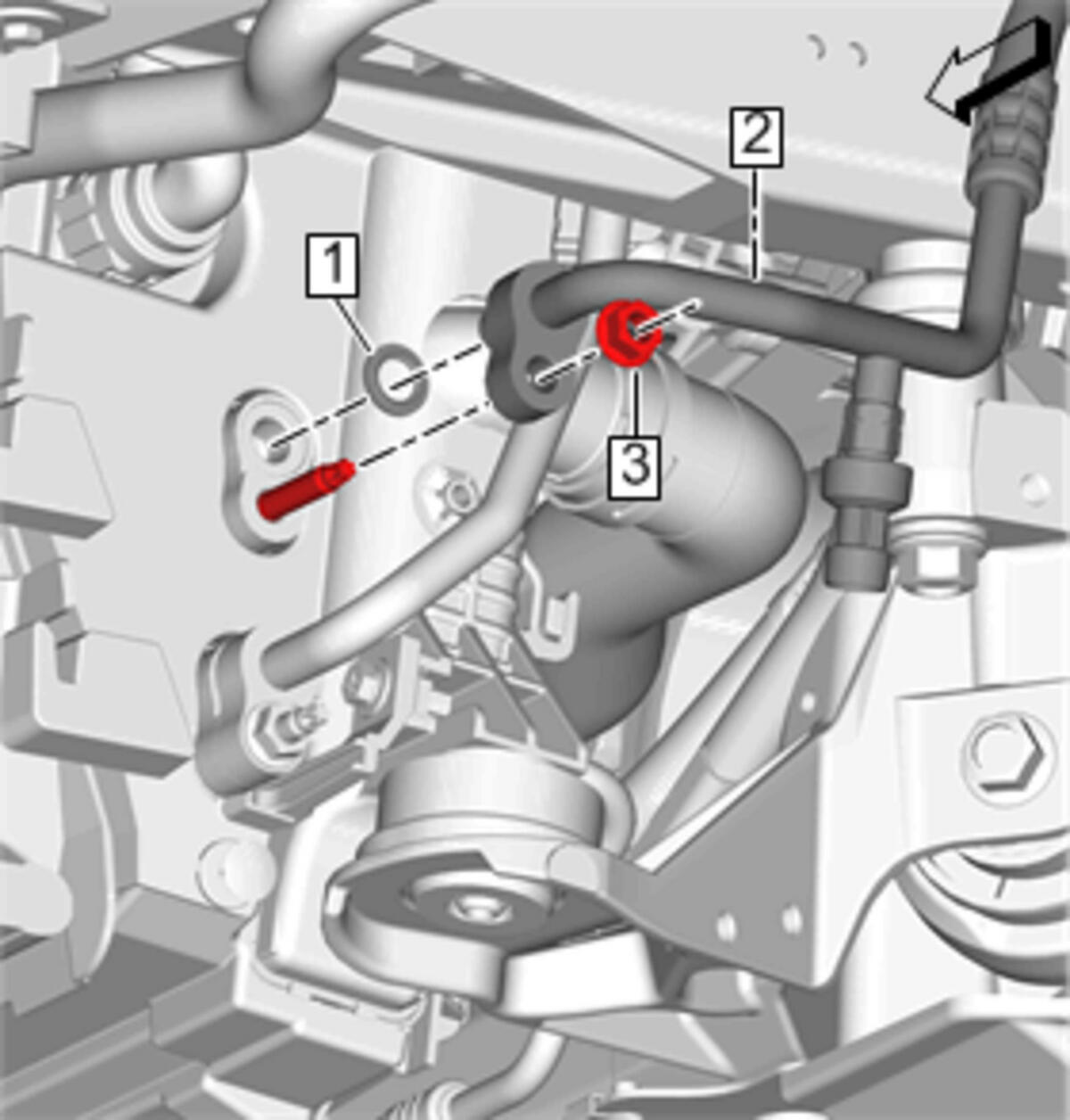

    8. Fig 3: Air Conditioning Condenser Hose Nut
    GM4032459Courtesy of GENERAL MOTORS COMPANY
  8. Install NEW sealing washers.
  9. Air Conditioning Compressor Hose - Install
  10. Air Conditioning Condenser Hose Nut Install and tighten 22 N.m (16 lb ft)
  11. Connect the electrical connector.
  12. Front Compartment Air Deflector Replacement (V Series) - Install
  13. Air Cleaner Assembly Replacement (LF4) - Install
  14. Recharge the refrigerant. Refrigerant Recovery and Recharging
