Evaporative Emission Canister Purge Solenoid Valve Replacement (LGX)

WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

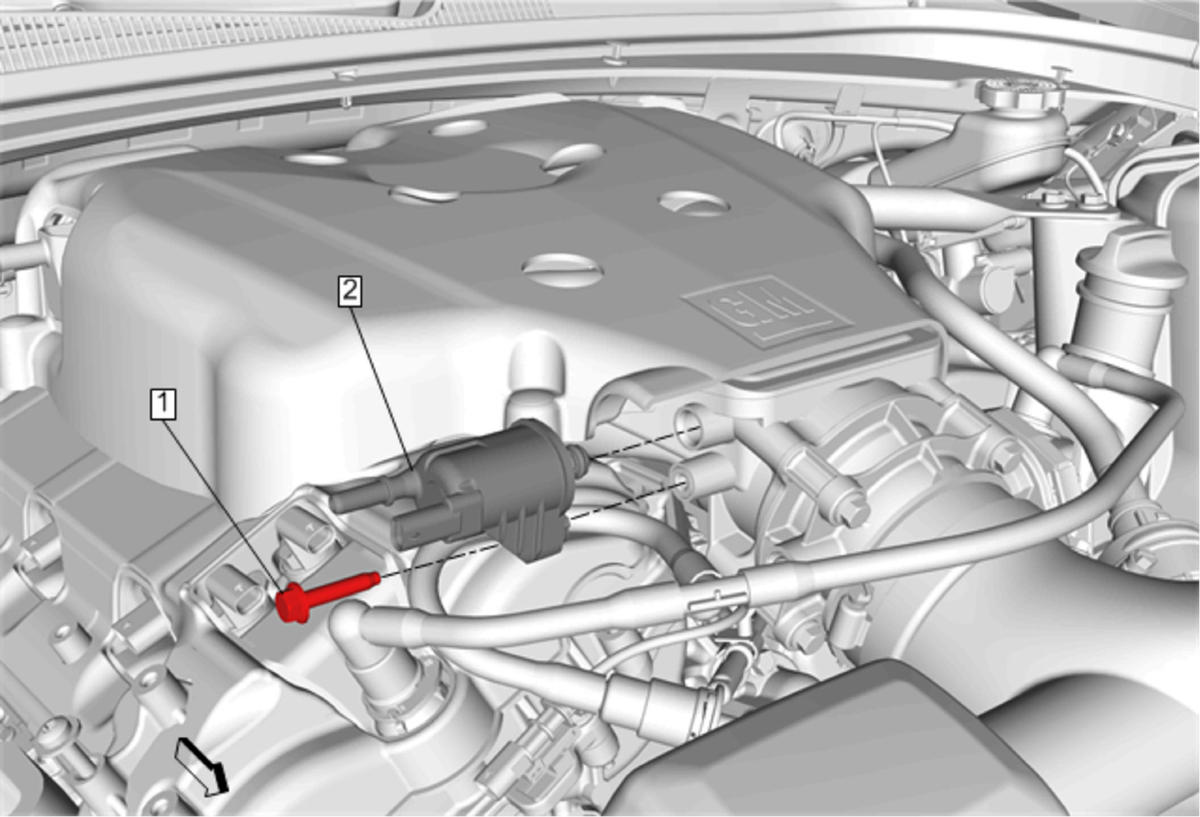

Fig 1: Evaporative Emission Canister Purge Solenoid Valve (LGX)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Intake Manifold Cover Replacement (LGX) Evaporative Emission Canister Purge Tube Replacement (LGX) Disconnect the electrical connector.
1	Evaporative Emission Canister Purge Solenoid Valve Bolt CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Evaporative Emission Canister Purge Solenoid Valve

Callout

Component Name

Preliminary Procedures

Intake Manifold Cover Replacement (LGX)
Evaporative Emission Canister Purge Tube Replacement (LGX)
Disconnect the electrical connector.

Evaporative Emission Canister Purge Solenoid Valve Bolt

CAUTION:

Refer to Fastener Caution .

Tighten
10 N.m (89 lb in)

Evaporative Emission Canister Purge Solenoid Valve
