Two/Four Wheel Drive Clutch Coil Housing Removal
WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

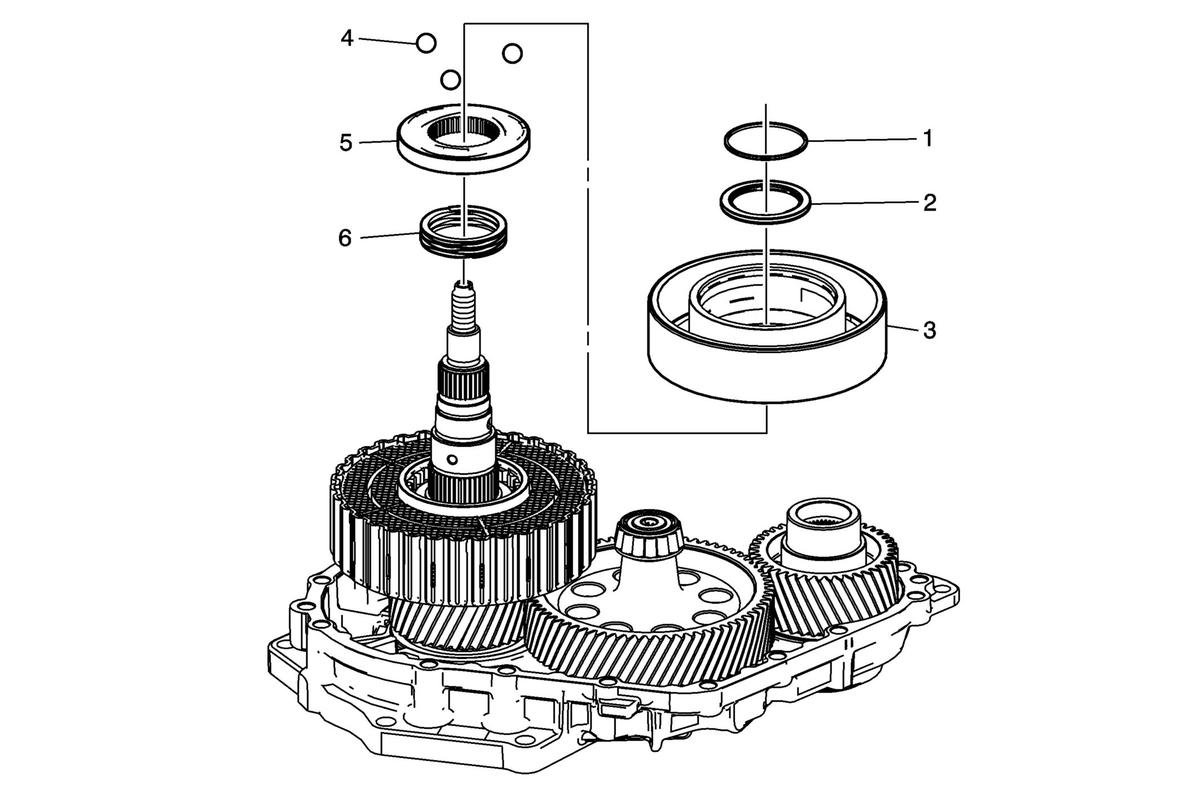

Courtesy of GENERAL MOTORS COMPANY Two/Four Wheel Drive Clutch Coil Housing Removal
| Callout |
Component Name |
| 1 |
Four Wheel Drive Clutch Shim |
| 2 |
Four Wheel Drive Clutch Housing Bearing |
| 3 |
Two/Four Wheel Drive Clutch Coil Housing |
| 4 |
Apply Cam Ball (Qty: 3) |
| 5 |
Apply Cam |
| 6 |
Four Wheel Drive Clutch Spring |
