Rear Output Shaft Flange and Seal Removal

WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

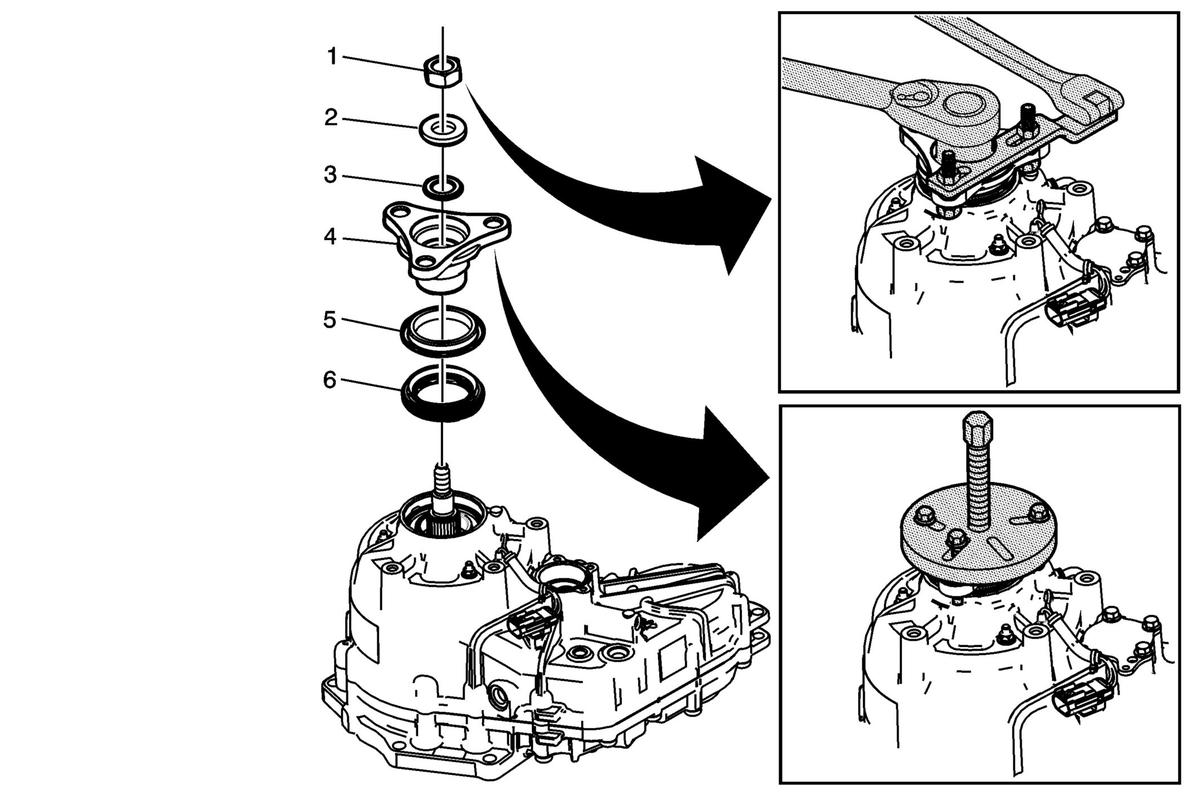

Fig 1: Rear Output Shaft Flange and Seal

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Output Shaft Flange Nut NOTE: Remove and DISCARD Special Tools J-45012 Holding Fixture For equivalent regional tools, refer to Special Tools .
2	Rear Output Shaft Flange Washer NOTE: Remove and DISCARD
3	Rear Output Shaft Flange O-ring Seal
4	Rear Output Shaft Flange NOTE: Use M10 x 1.5 mm nuts and bolts to retain the tool to the flange. Special Tools J-45019 Flange and Pinion Cage Remover
5	Rear Output Shaft Seal Dirt Deflector NOTE: Remove the rear output shaft seal dirt deflector as required.
6	Rear Output Shaft Seal CAUTION: Refer to Machined Surface Damage Caution .
