Idler Gear, Front Output Shaft Gear, and Oil Baffle Removal
WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

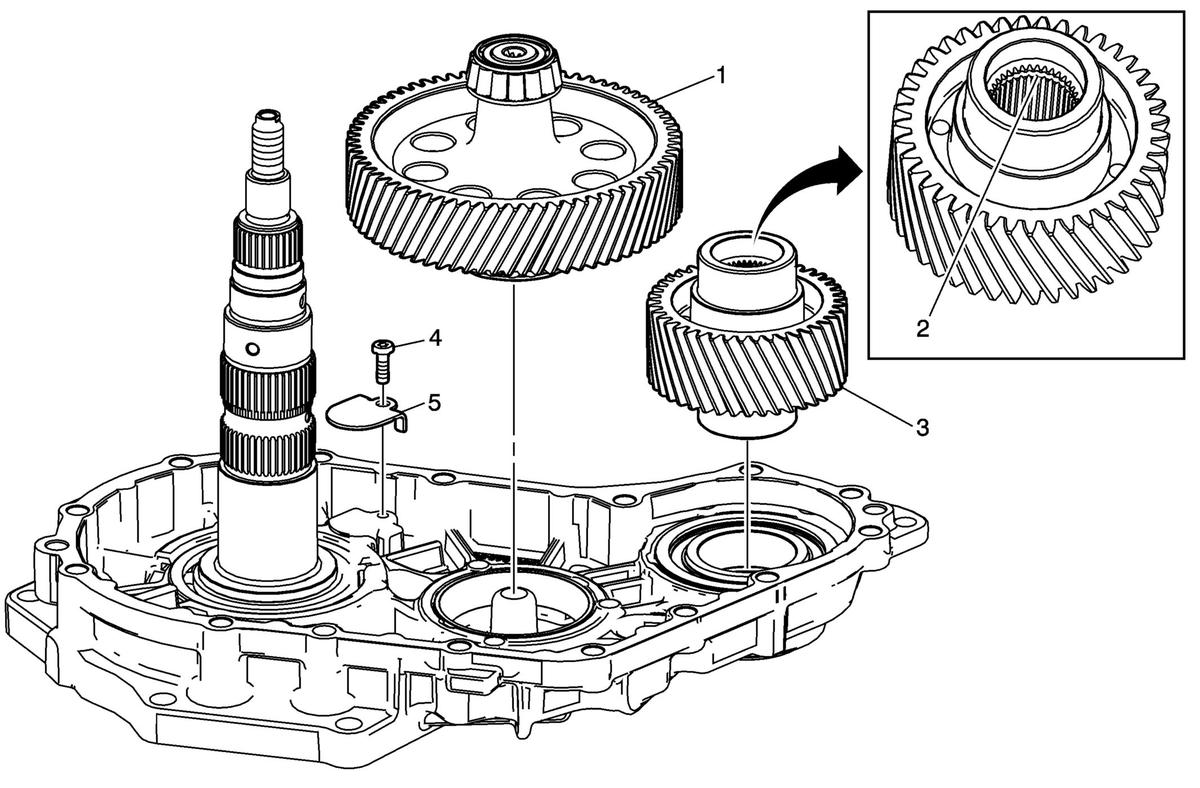

Idler Gear, Front Output Shaft Gear, and Oil Baffle Removal
| Callout | Component Name |
|---|---|
| 1 | Idler Gear
NOTE:
The case halves, idler gear, and idler gear bearings and races are not available as separate service parts. If component replacement is required, the transfer case is to be replaced as an assembly. |
| 2 | Front Output Shaft Snap Ring Groove |
| 3 | Front Output Shaft Gear
NOTE:
The orientation and of the gear and the location of the front output shaft snap ring groove (2) for assembly. The gear is to be installed with the front output shaft snap ring groove (2) facing away from the front case half. |
| 4 | Oil Baffle Bolt |
| 5 | Oil Baffle |
