Idler Gear Rear Bearing Race and Front Output Shaft Rear Bearing Removal

WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

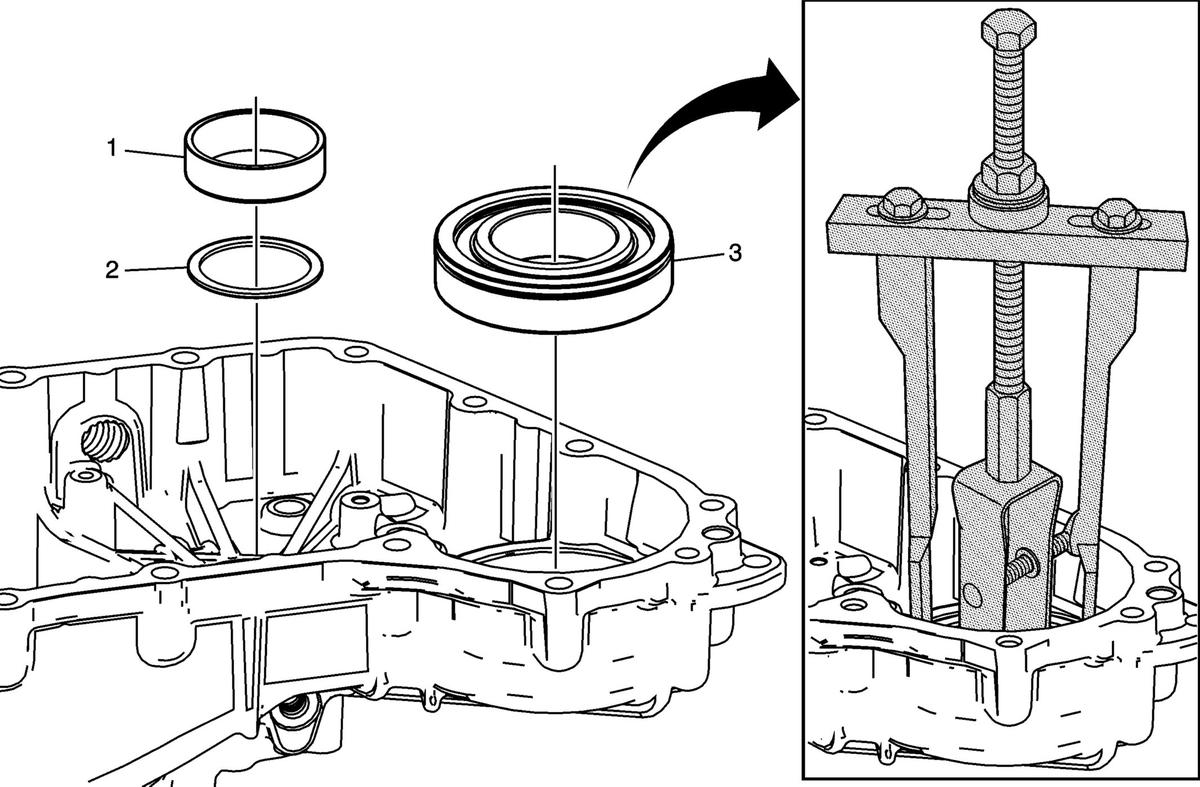

Fig 1: Idler Gear Rear Bearing Race and Front Output Shaft Rear Bearing

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Idler Gear Rear Bearing Race NOTE: DO NOT remove the idler gear bearing race and shim from the case half. The case halves, idler gear, and idler gear bearings and races are not available as separate service parts. If component replacement is required, the transfer case is to be replaced as an assembly.
2	Idler Gear Bearing Shim NOTE: DO NOT remove the idler gear bearing race and shim from the case half. The case halves, idler gear, and idler gear bearings and races are not available as separate service parts. If component replacement is required, the transfer case is to be replaced as an assembly.
3	Front Output Shaft Rear Bearing Special Tools J-45124 Removal Bridge J-45124-9 Puller Leg J-29369-2 Bushing and Bearing Remover - 2-3 in For equivalent regional tools, refer to Special Tools .

Callout

Component Name

Idler Gear Rear Bearing Race

NOTE:

DO NOT remove the idler gear bearing race and shim from the case half. The case halves, idler gear, and idler gear bearings and races are not available as separate service parts. If component replacement is required, the transfer case is to be replaced as an assembly.

Idler Gear Bearing Shim

NOTE:

Front Output Shaft Rear Bearing

Special Tools

J-45124 Removal Bridge
J-45124-9 Puller Leg
J-29369-2 Bushing and Bearing Remover - 2-3 in

For equivalent regional tools, refer to Special Tools .
