Idler Gear Rear Bearing Race and Front Output Shaft Rear Bearing Installation
WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
Idler Gear Rear Bearing Race and Front Output Shaft Rear Bearing Installation

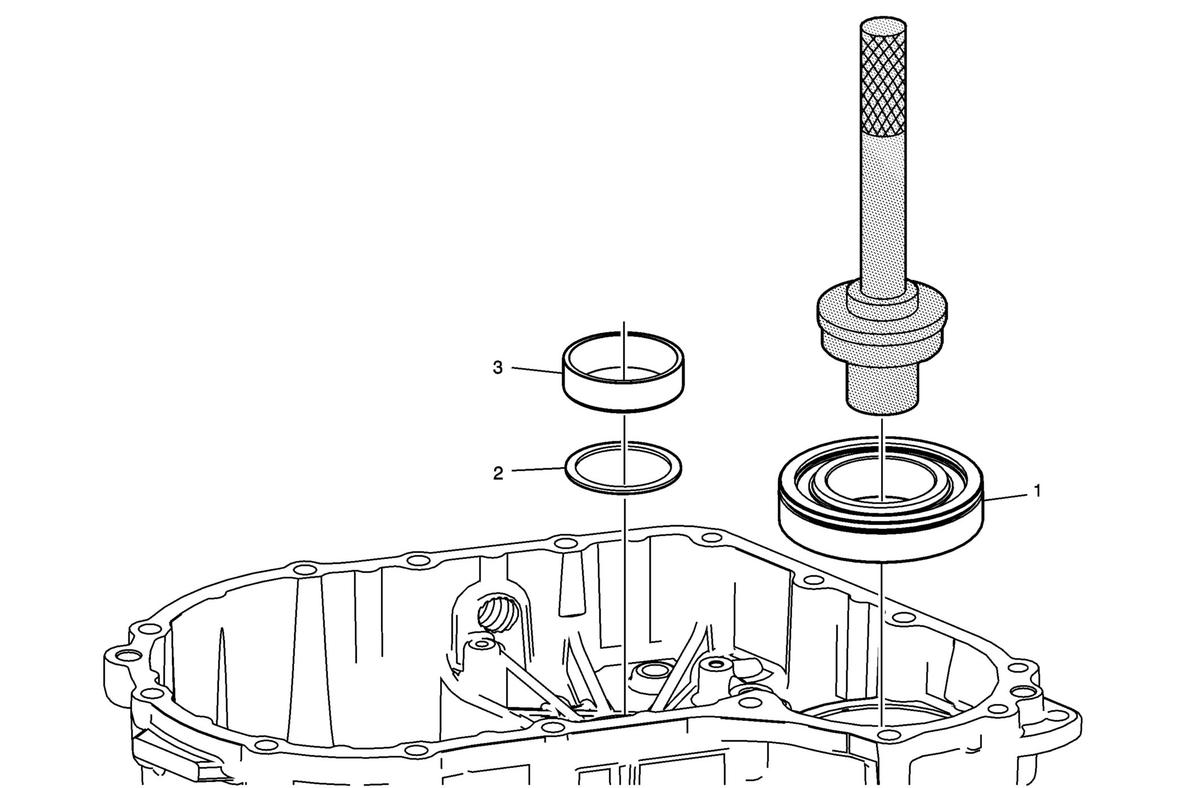

| Callout | Component Name |
|---|---|
| 1 | Front Output Shaft Rear Bearing Special Tools J-45853 Rear Axle Bearing / Seal Installer Equivalent regional tools:Special Tools . |
| 2 | Idler Gear Bearing Shim
NOTE:
DO NOT remove the idler gear bearing race from the case half. The case halves, idler gear, and idler gear bearings and races are not available as separate service parts. If component replacement is required, the transfer case is to be replaced as an assembly. |
| 3 | Idler Gear Rear Bearing Race
NOTE:
DO NOT remove the idler gear bearing race from the case half. The case halves, idler gear, and idler gear bearings and races are not available as separate service parts. If component replacement is required, the transfer case is to be replaced as an assembly. |
