Installation Procedure

WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

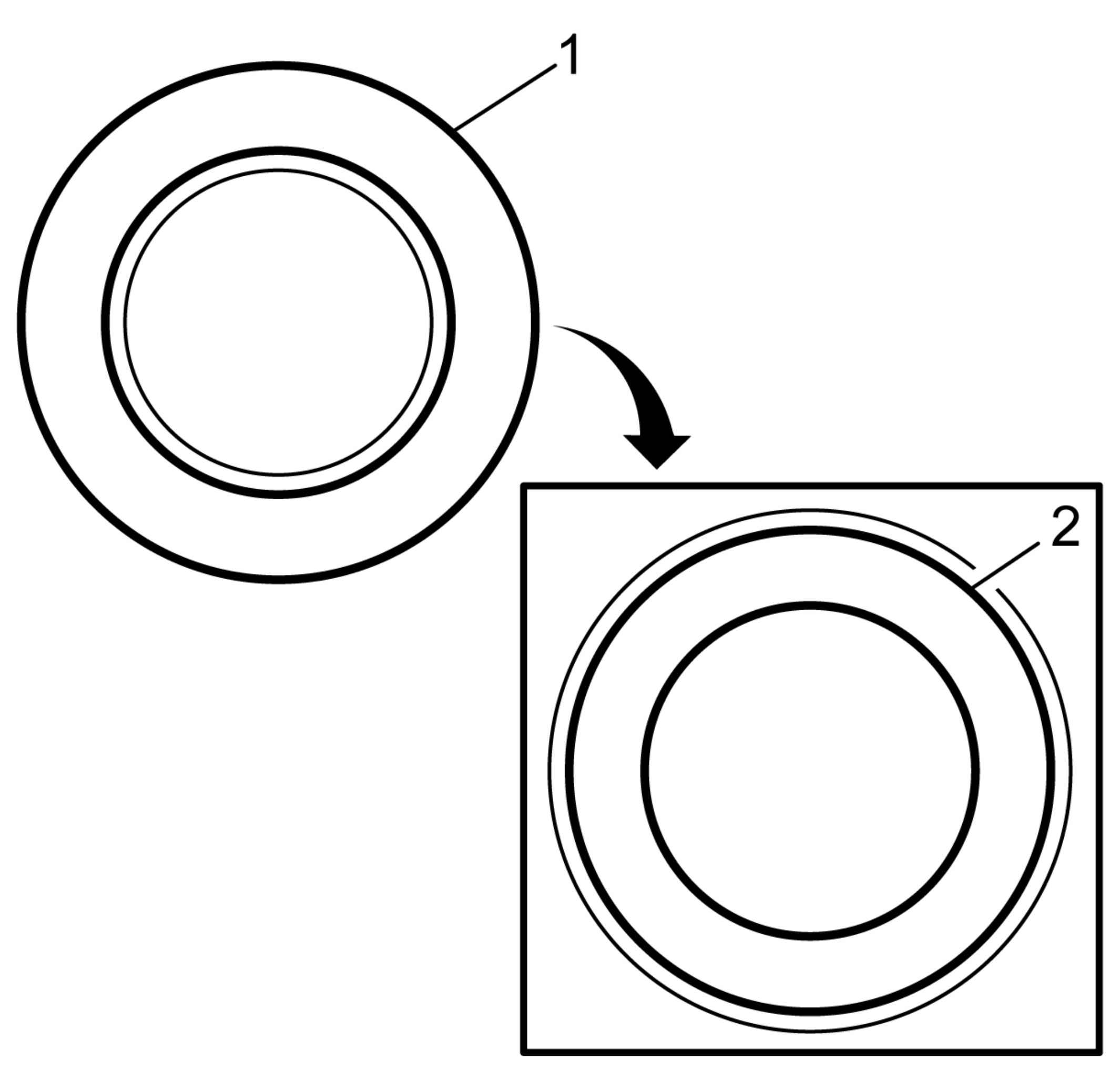

    Fig 1: Rolloboot And Carrier Flange
    GM4181339Courtesy of GENERAL MOTORS COMPANY
  1. The Rolloboot assembly contains the Rolloboot (1) and the carrier flange (2).

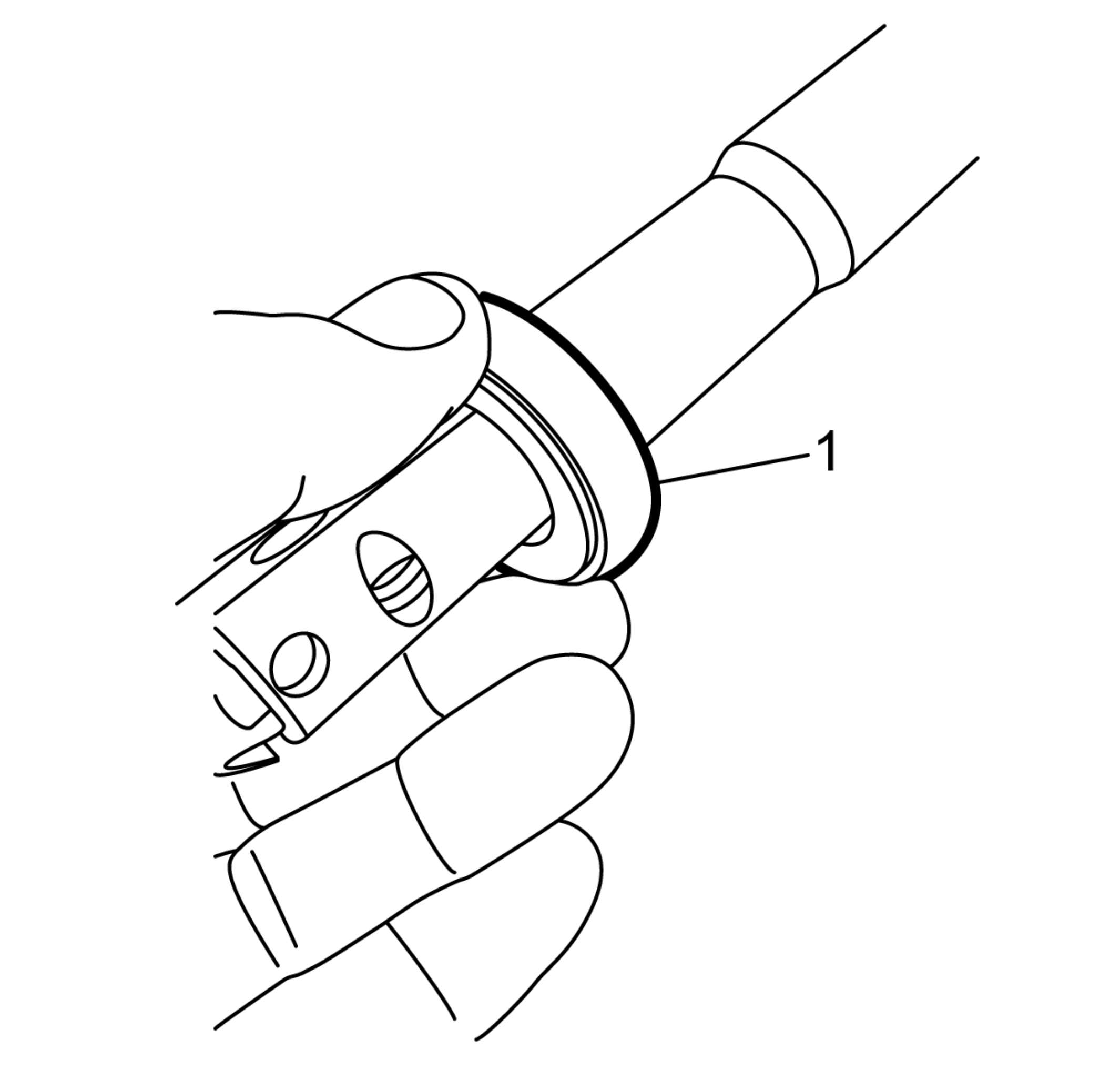

  2. Fig 2: Rolloboot Assembly
    GM4181340Courtesy of GENERAL MOTORS COMPANY
  3. Place the Rolloboot assembly (1) over the end of the upper intermediate steering shaft with the carrier flange toward the operator.

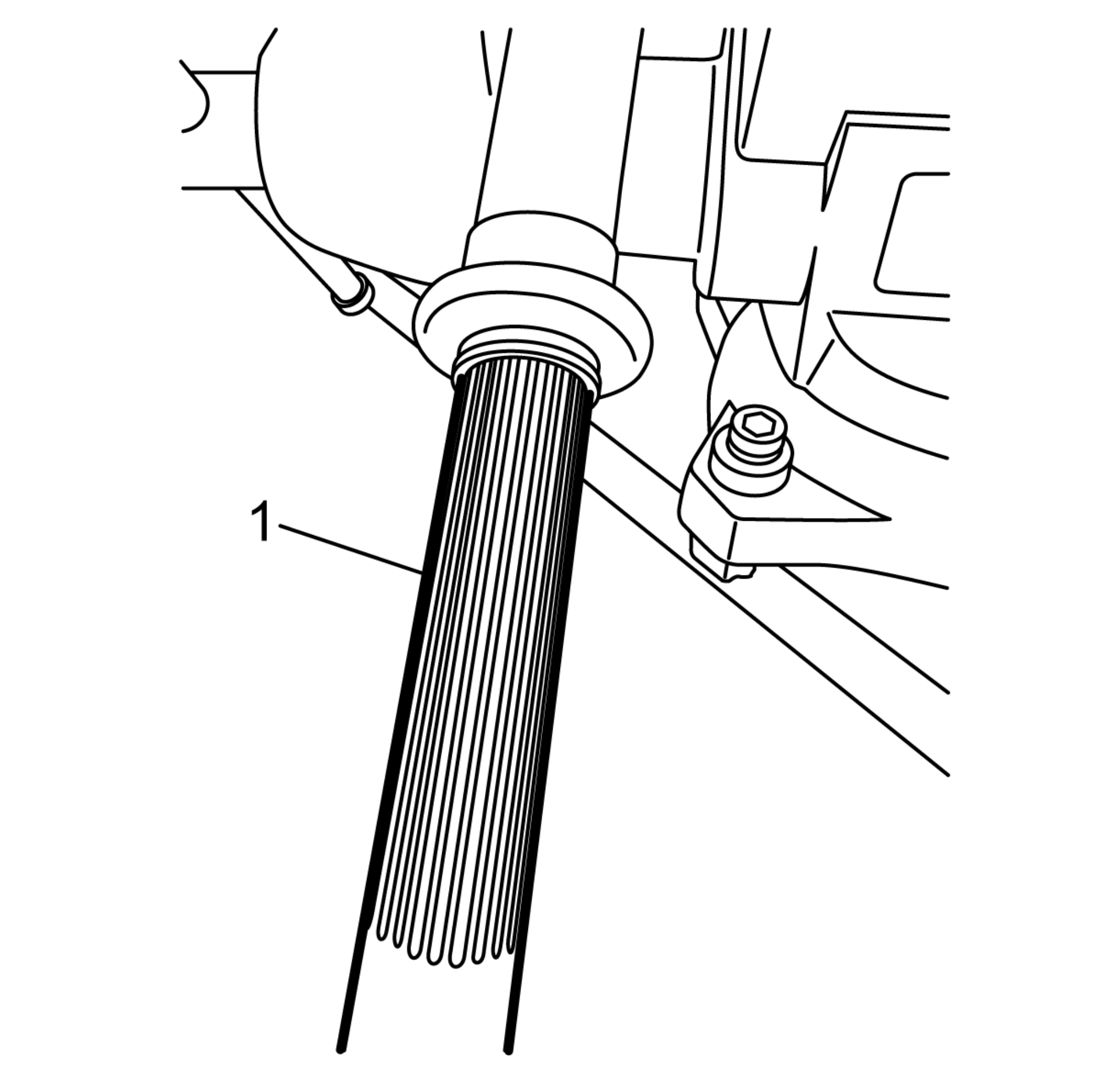

  4. Fig 3: Rolloboot Assembly
    GM4181341Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    There is a step in the bore of the carrier that will stop against the end of the outer tube.

  5. Slide the Rolloboot assembly (1) up the upper intermediate steering shaft until the bore of the carrier engages with the end of the outer tube.

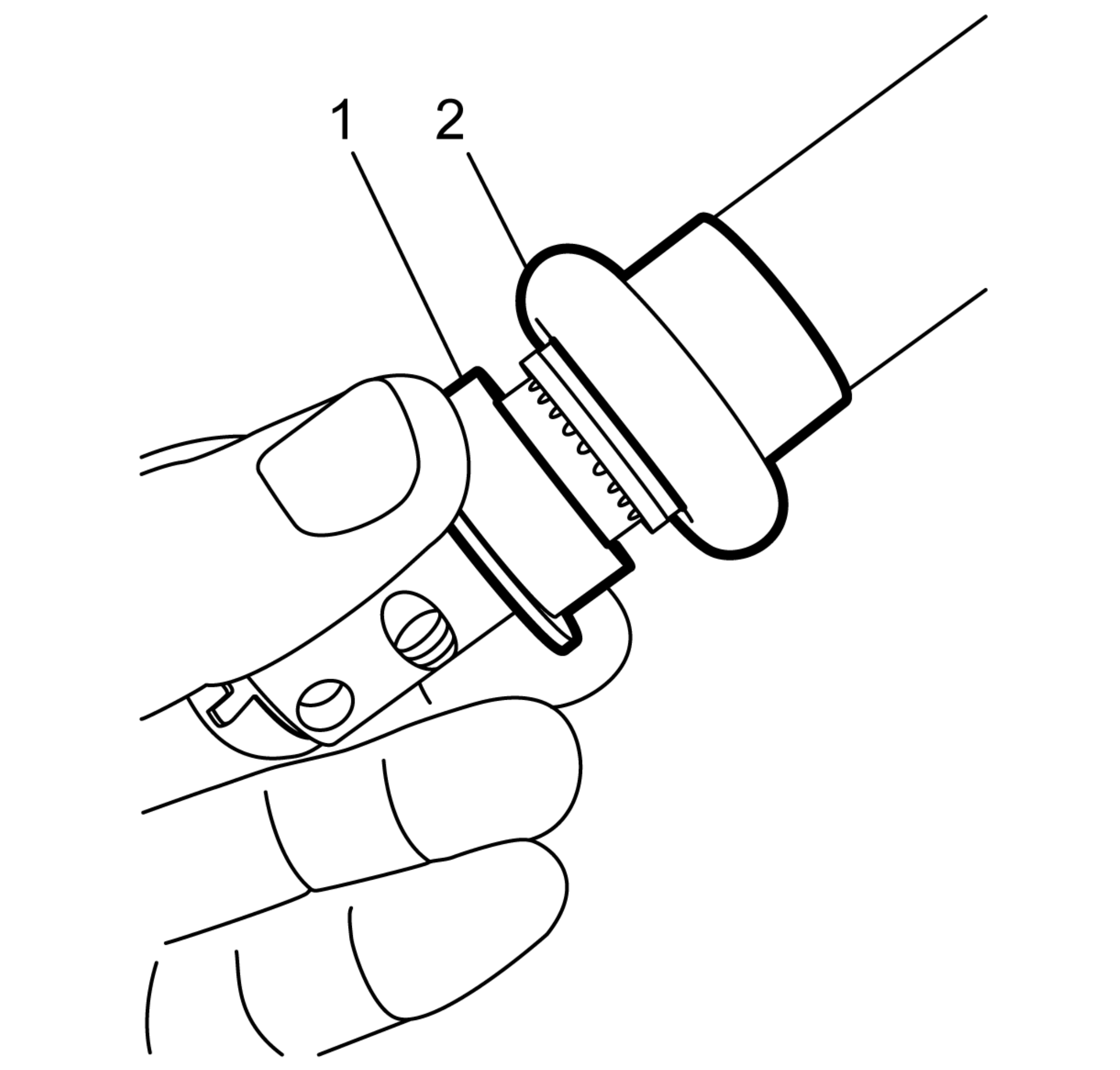

  6. Fig 4: Rolloboot And Carrier
    GM4181343Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    After the Rolloboot is on the outer tube, the carrier will be free and can be set aside.

  7. Holding the carrier (1) against the outer tube, push on the Rolloboot (2) and roll it onto the outer tube.
  8. NOTE:

    If the Rolloboot does NOT "flap", you may need to use your fingers to help with this operation.

  9. Continue to roll the Rolloboot (2) onto the outer tube until a portion of the Rolloboot unrolls and "flaps" onto the outer tube.

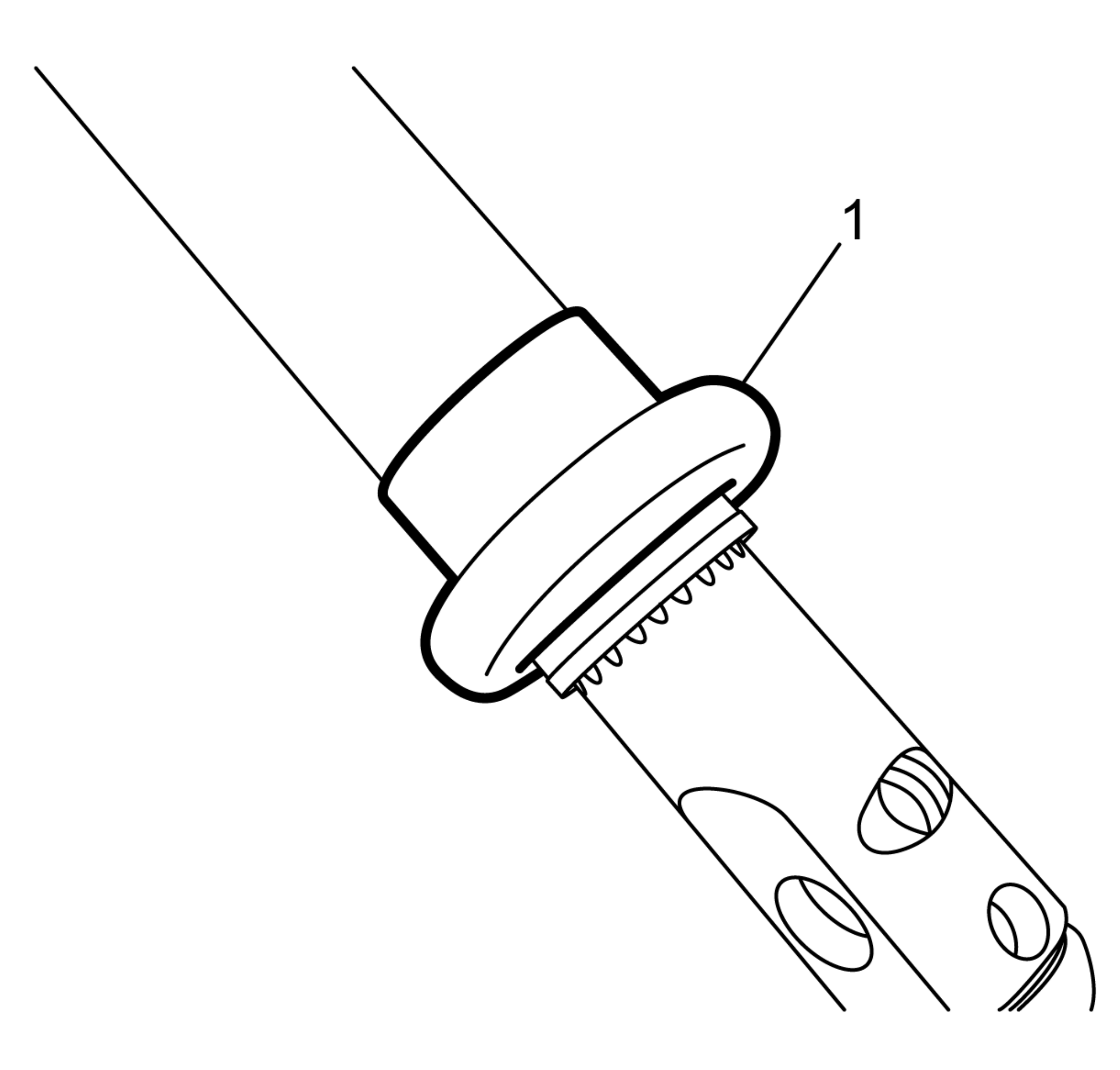

  10. Fig 5: Rolloboot
    GM4181344Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The graphic shows how the Rolloboot should look on the upper intermediate steering shaft prior to unrolling it.

  11. Inspect the Rolloboot (1) and make sure it is installed correctly on the upper intermediate steering shaft.

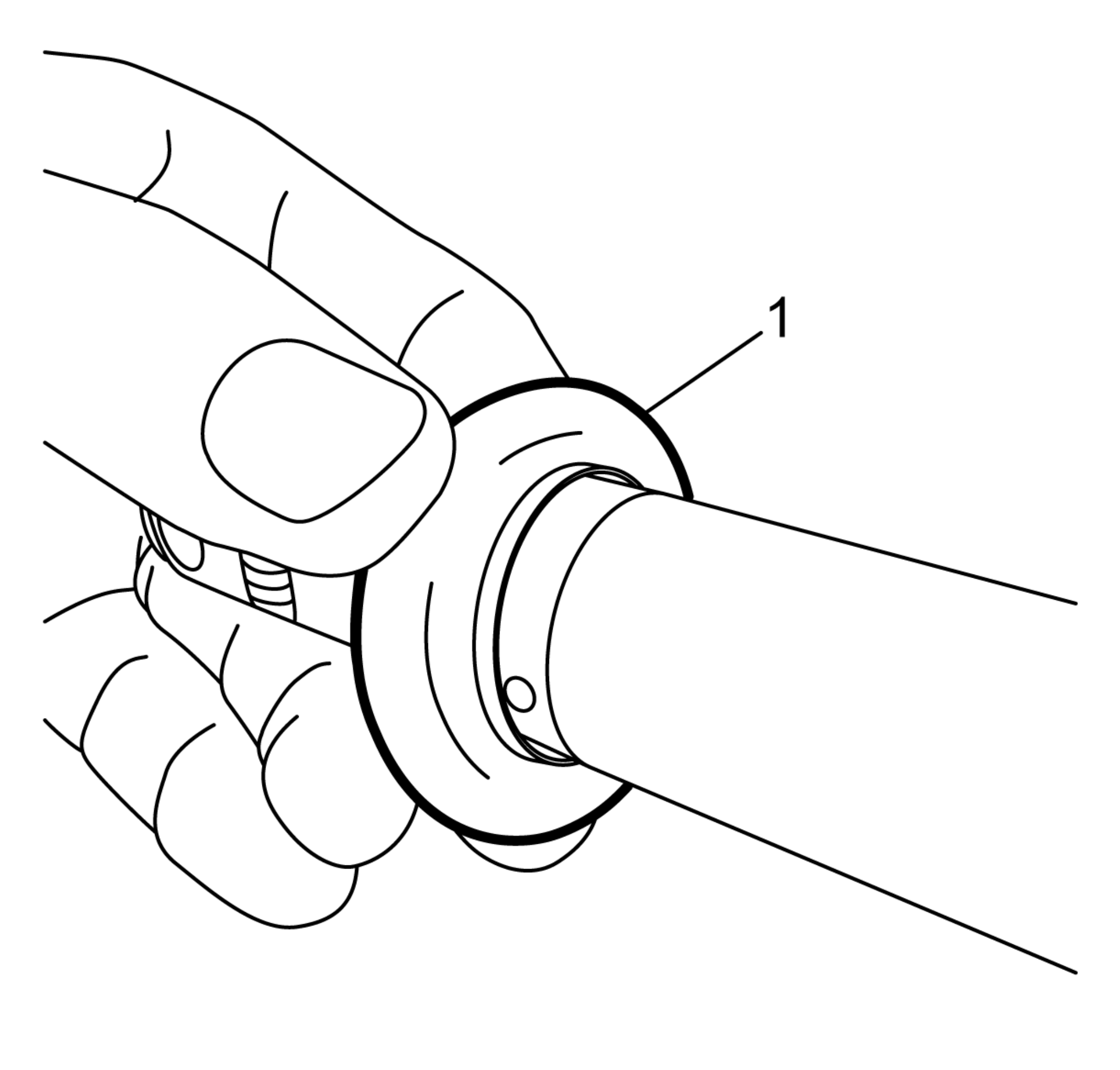

  12. Fig 6: Inner Tube
    GM4181345Courtesy of GENERAL MOTORS COMPANY
  13. Extend the inner tube (1) BEFORE unrolling the Rolloboot.
  14. Fig 7: Upper Intermediate Steering Shaft
    GM4275767Courtesy of GENERAL MOTORS COMPANY
  15. Carefully slide the upper intermediate steering shaft (2) through the intermediate steering shaft inner boot and the intermediate steering shaft boot from the inside of the vehicle.
  16. Extend the upper intermediate steering shaft (2) as far as possible and connect it to the mid intermediate steering shaft.
  17. CAUTION:

    Refer to Fastener Caution .

  18. Mid Intermediate Steering Shaft Bolt - Install and tighten 36 N.m (27 lb ft)
    1. Clean the threads of the bolt with denatured alcohol or equivalent and allow to dry.
    2. Apply thread locking adhesive to the bolt. Adhesives, Fluids, Lubricants, and Sealers

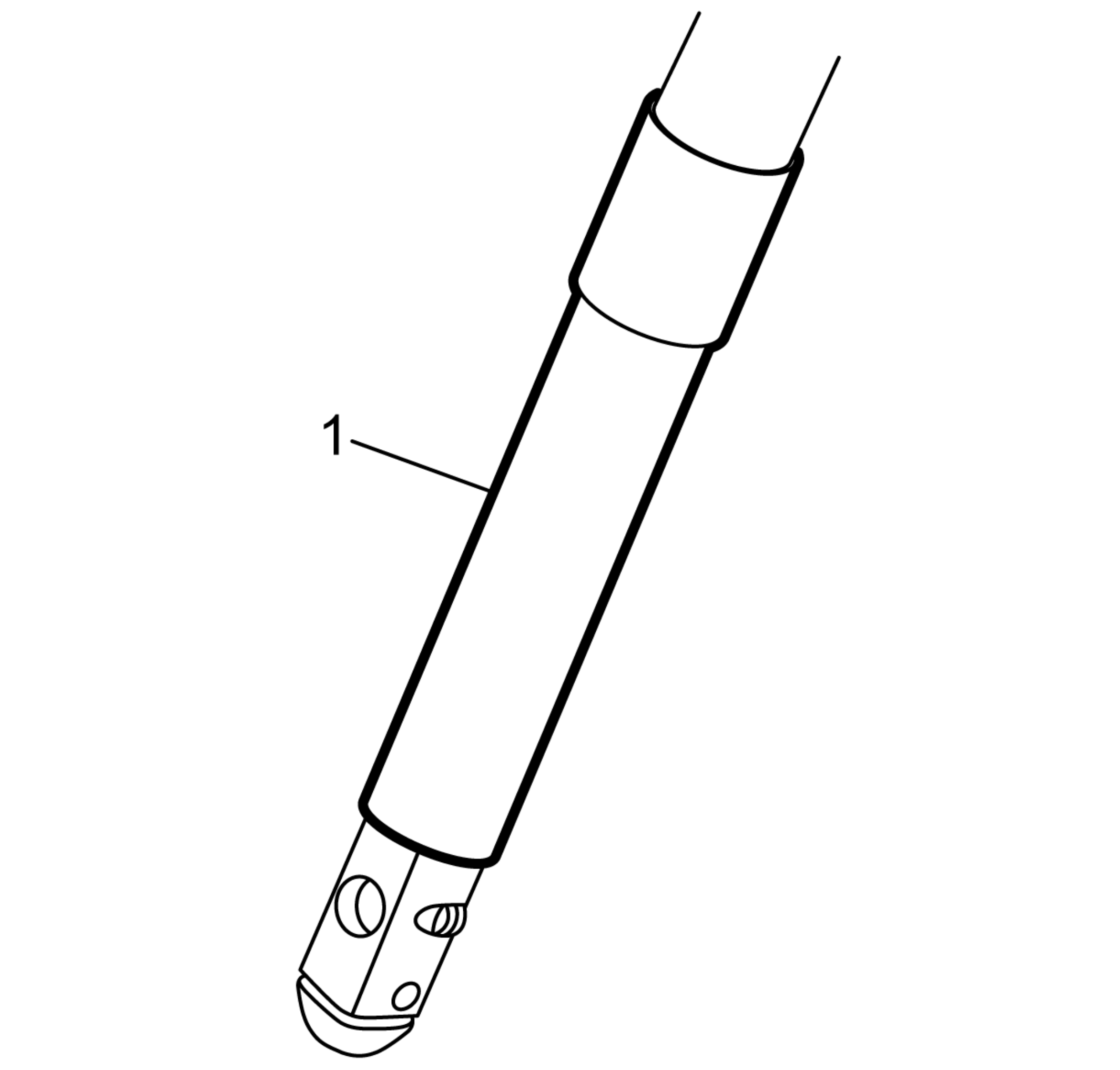

  19. Fig 8: Unroll Rolloboot
    GM4181346Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The upper intermediate steering shaft and mid intermediate steering shaft MUST be connected and the mid intermediate steering shaft bolt tightened to specification BEFORE unrolling the Rolloboot.

  20. Unroll Rolloboot (1) completely to cover the upper intermediate steering shaft splines.
  21. Steering Column - Install - Steering Column Replacement (N37) Steering Column Replacement (N38)
