Installation Procedure
WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

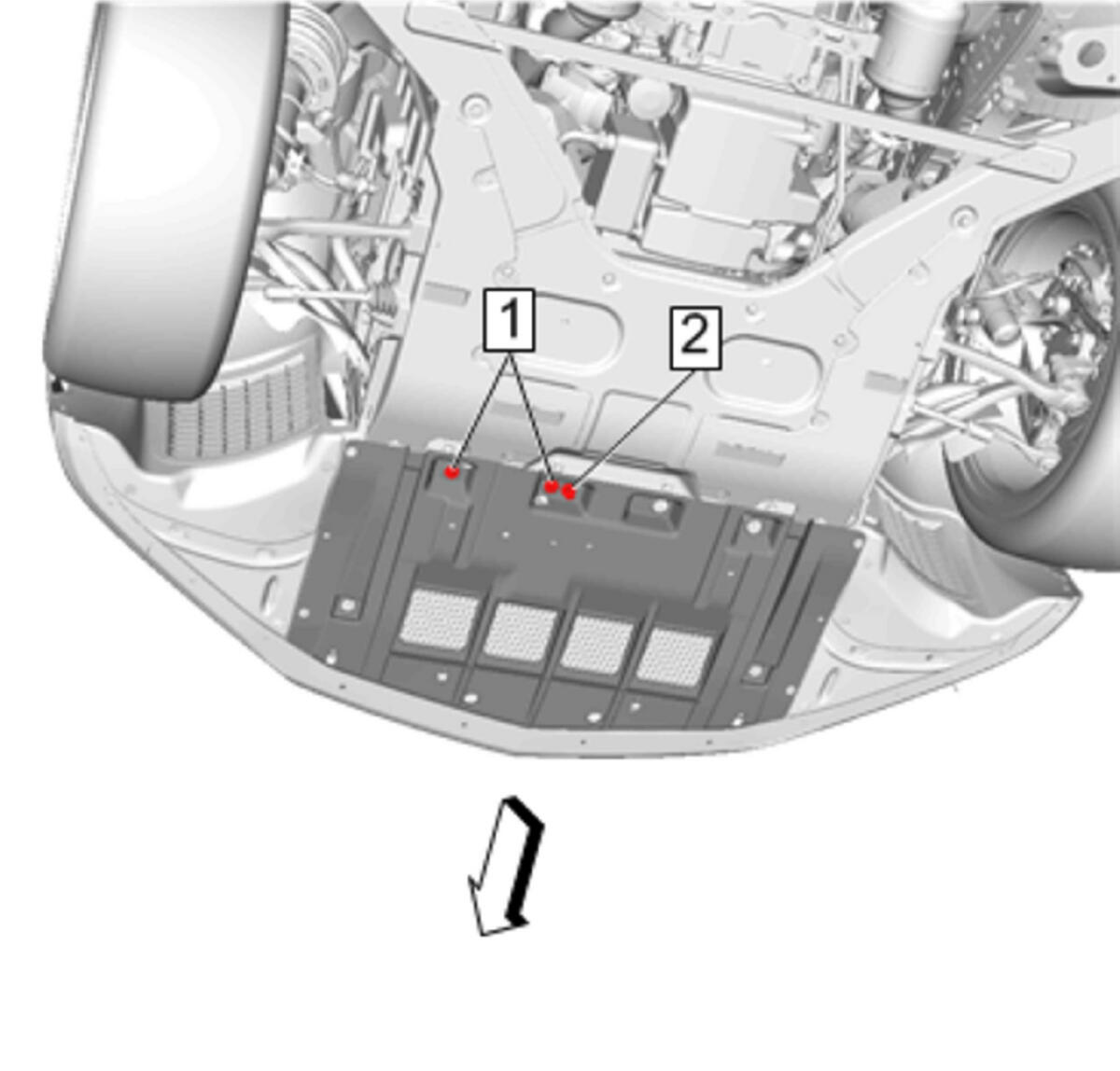

- Front Compartment Air Deflector Retainers

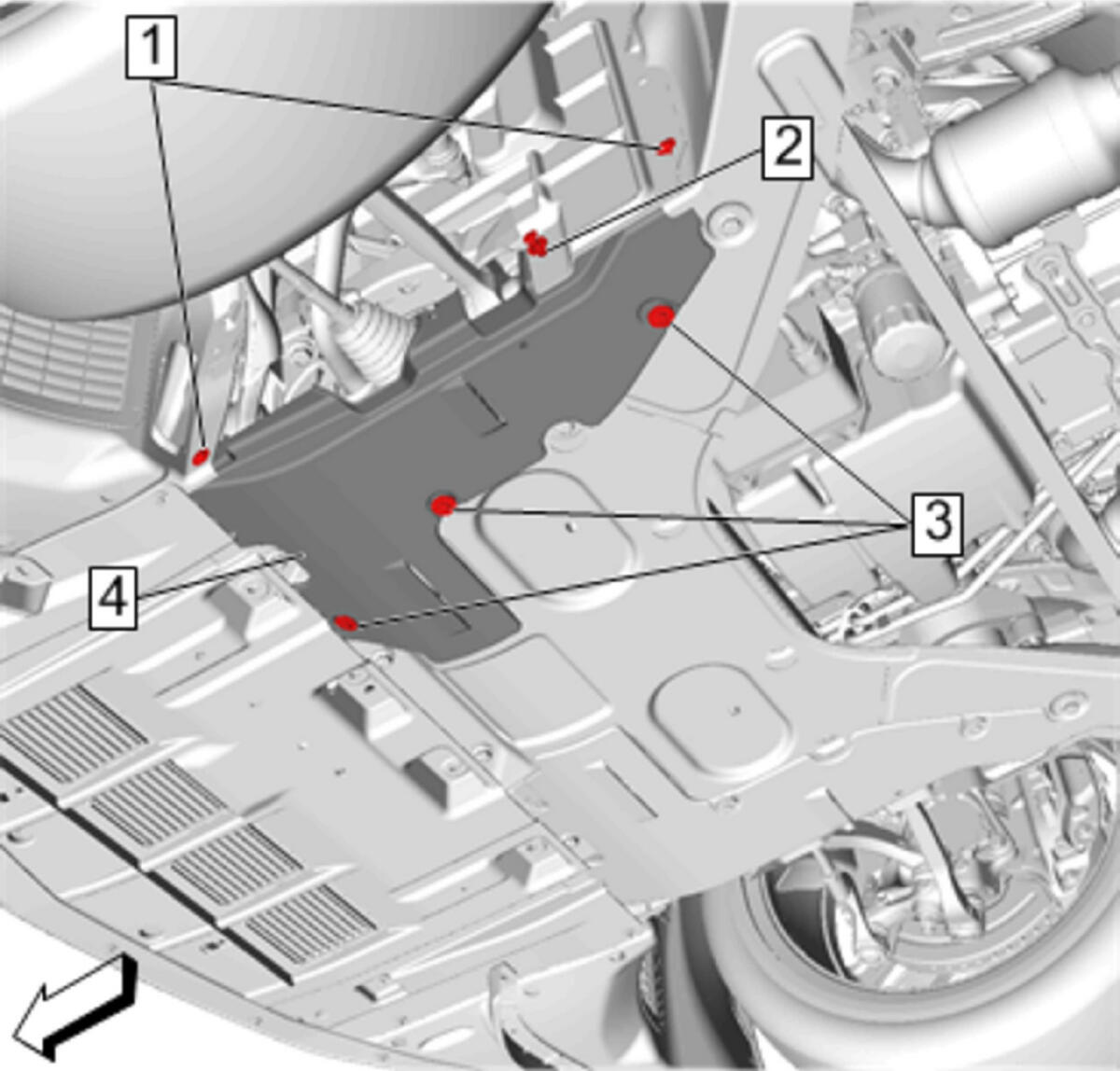

- Front Compartment Side Noise Shield Retainer - install
- Front Compartment Side Noise Shield Screw - install and tighten 2.5 N.m (22 lb in)
- Front Compartment Side Noise Shield Bolt - install and tighten 9 N.m (80 lb in)
- Front Compartment Air Deflector Fastener - install and tighten 5 N.m (44 lb in)
- Front Compartment Air Deflector Retainer - install
- Lower the vehicle.
CAUTION:
Refer to Fastener Caution
