Section 45 (Wiring Systems And Power Management - Power Distribution Schematics)
>>
Schematic Wiring Diagrams
>>
Power Distribution Wiring Schematics
>>
F1DA, F3RB, F11DA, F12DA, F13DA, F15DA, F16DA, F26DA and F29DA Fuses
F1DA, F3RB, F11DA, F12DA, F13DA, F15DA, F16DA, F26DA and F29DA Fuses
WARNING:
This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

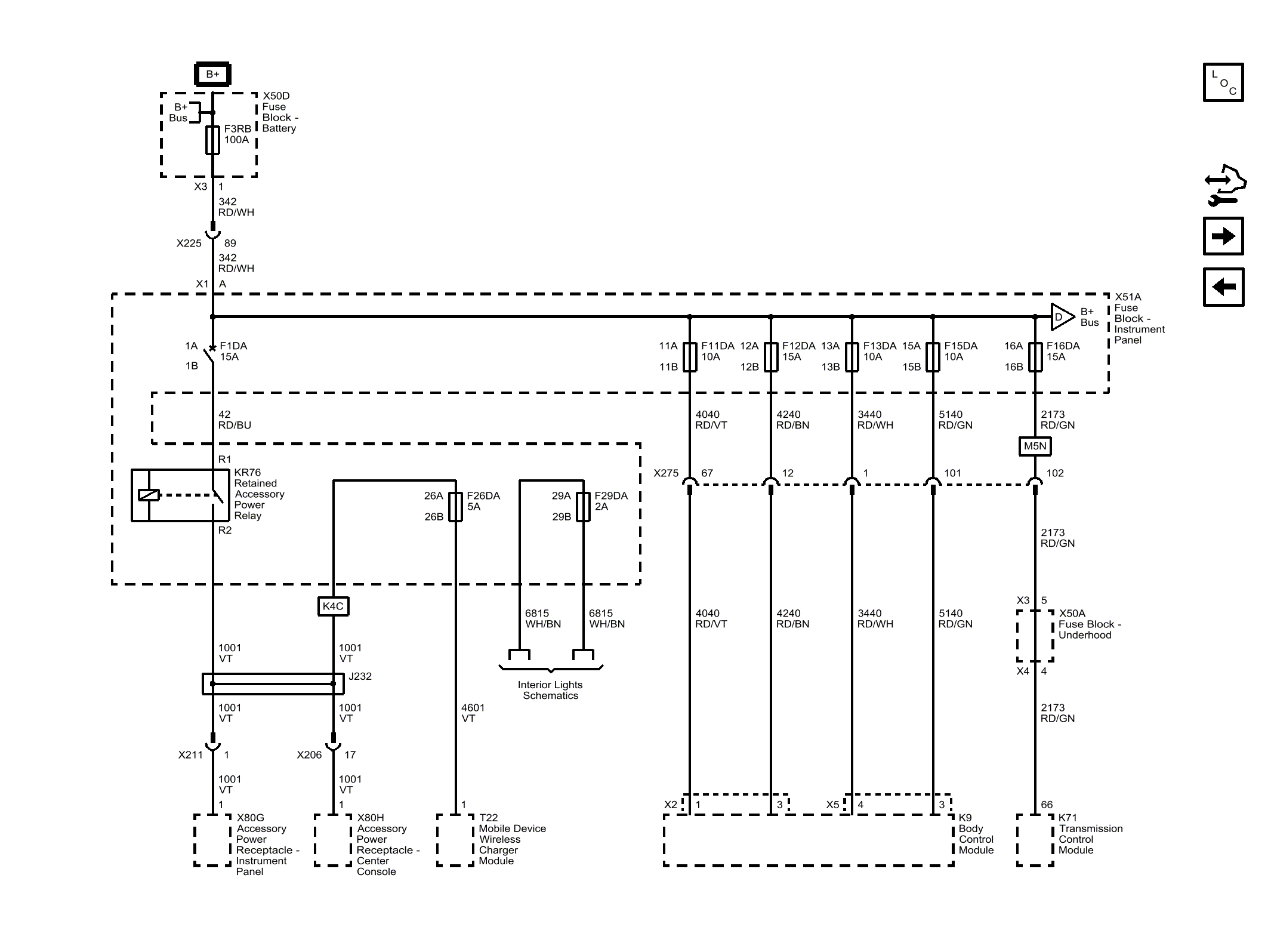

Fig 1: F1DA, F3RB, F11DA, F12DA, F13DA, F15DA, F16DA, F26DA and F29DA Fuses
Courtesy of GENERAL MOTORS COMPANY
