Water Pump Installation
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

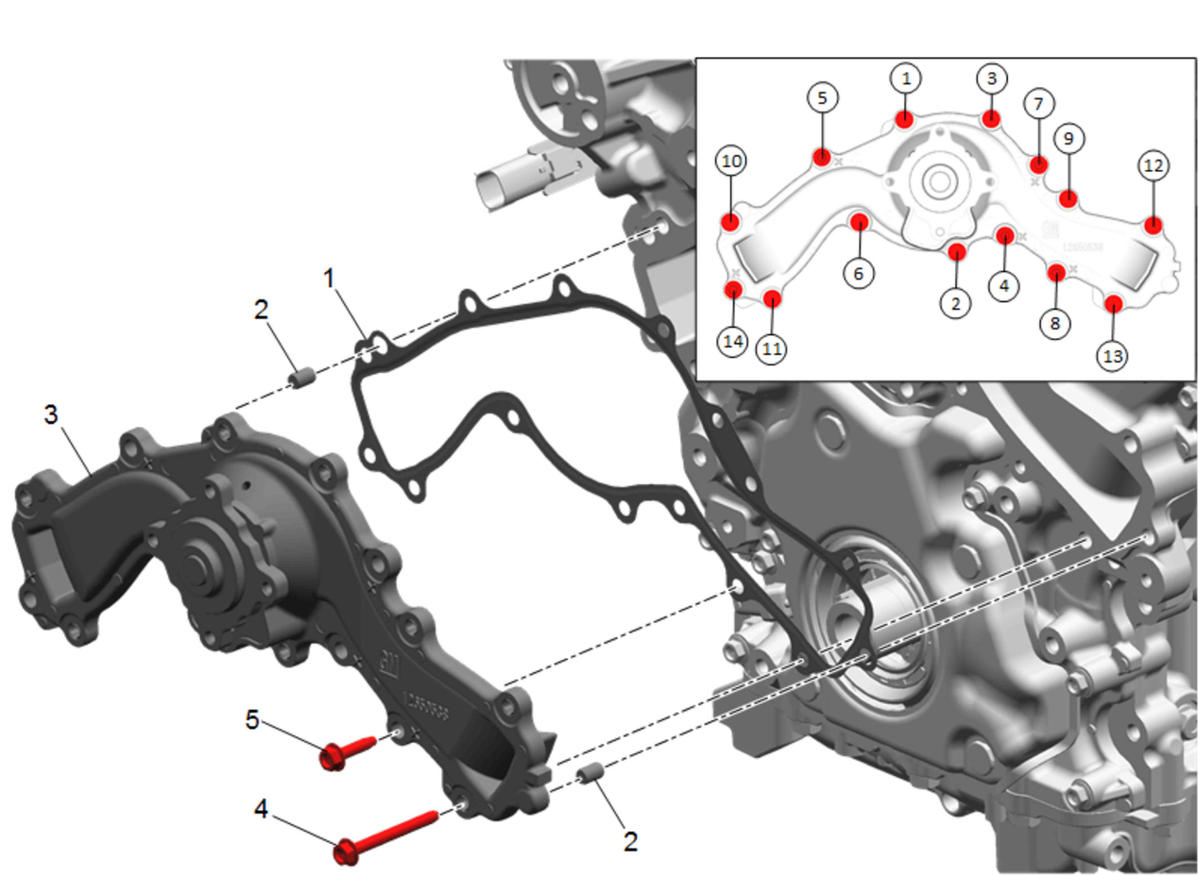

| Callout | Component Name |
|---|---|
| 1 | Water Pump Gasket
NOTE:
Install a NEW gasket. |
| 2 | Water Pump Locating Pin (Qty: 2) |
| 3 | Water Pump |
| 4 | Engine Front Cover Bolt (Qty: 9)
CAUTION:
Refer to Fastener Caution . Tighten in sequence 15 N.m (11 lb ft) |
| 5 | Water Pump Bolt (Qty: 4)
CAUTION:
This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.
NOTE:
Install NEW bolts. Tighten in sequence 15 N.m (11 lb ft) |
| 6 | Water Pump Pulley Procedure
Special Tools EN-46104 Water Pump Pulley Holding Tool For equivalent regional tools, refer to Special Tools . |
| 7 | Water Pump Pulley Bolt (Qty: 4) Tighten 10 N.m (89 lb in) |
