Intake Manifold Removal
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

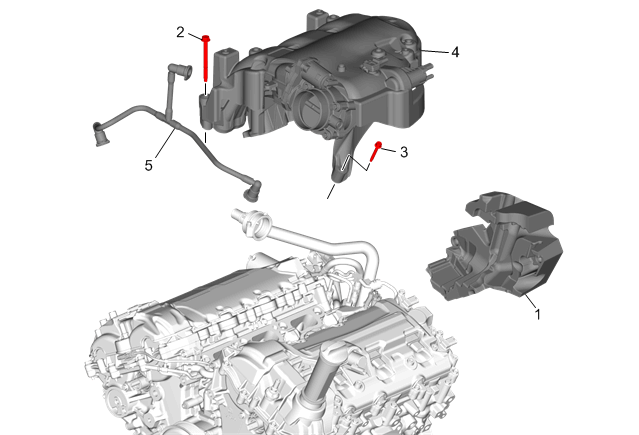

| Callout | Component Name |
|---|---|
| 1 | Engine Rear Noise Shield
WARNING:
The noise cancelling foam component MUST be replaced if it has been exposed to engine fluids. Failure to replace the noise cancelling foam component that has been exposed to engine fluids may result in an engine fire resulting in catastrophic engine damage, and possible injury or death. |
| 2 | Intake Manifold Bolt (Qty: 8) |
| 3 | Intake Manifold Bolt |
| 4 | Intake Manifold |
| 5 | Positive Crankcase Ventilation Tube Connector |
