Camshaft Installation - Right Side
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

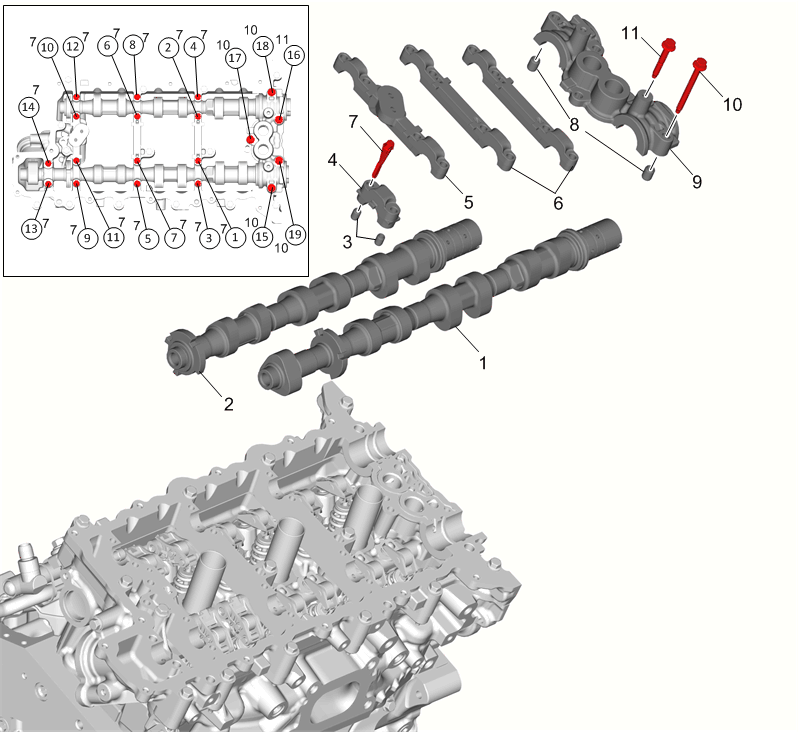

| Callout | Component Name |
|---|---|
| 1 | Exhaust Camshaft Procedure Make sure the camshaft flats with laser etched markings are straight up in relation to the cylinder head and that the crankshaft is in the stage 2 position. The crankshaft key way will be at approximately the 3 o'clock position. Refer to Timing Chain Alignment Diagram .
NOTE:
Ensure the flat is facing upward when installed to help when installing timing chains. |
| 2 | Intake Camshaft Procedure Make sure the camshaft flats with laser etched markings are straight up in relation to the cylinder head and that the crankshaft is in the stage 2 position. The crankshaft key way will be at approximately the 3 o'clock position. Refer to Timing Chain Alignment Diagram .
NOTE:
Ensure the flat is facing upward when installed to help when installing timing chains. |
| 3 | Dowel Pin |
| 4 | Camshaft Bearing Cap - Intermediate |
| 5 | Camshaft Bearing Cap |
| 6 | Camshaft Bearing Cap |
| 7 | Camshaft Bearing Cap Bolt
CAUTION:
Refer to Fastener Caution . Tighten in sequence
|
| 8 | Dowel Pin |
| 9 | Camshaft Bearing Cap |
| 10 | Camshaft Carrier Bolt Tighten in sequence
|
| 11 | Camshaft Bearing Cap Bolt Tighten in sequence
|
