Installation Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Engine Oil Level Indicator
    GM4232618Courtesy of GENERAL MOTORS COMPANY
  1. Install Engine Oil Level Indicator (2) - Oil Pan Assemble

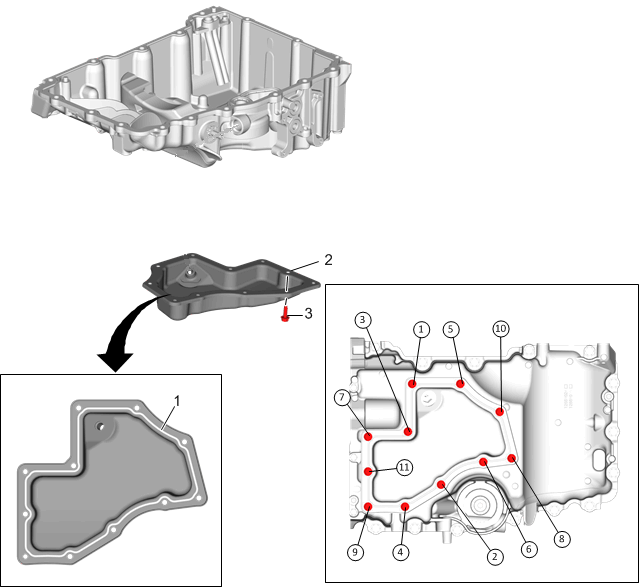

    2. Fig 2: Lower Oil Pan
    GM4293595Courtesy of GENERAL MOTORS COMPANY
  2. Install Lower Oil Pan (2) - Oil Pan Assemble
