Rocker Panel Molding Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

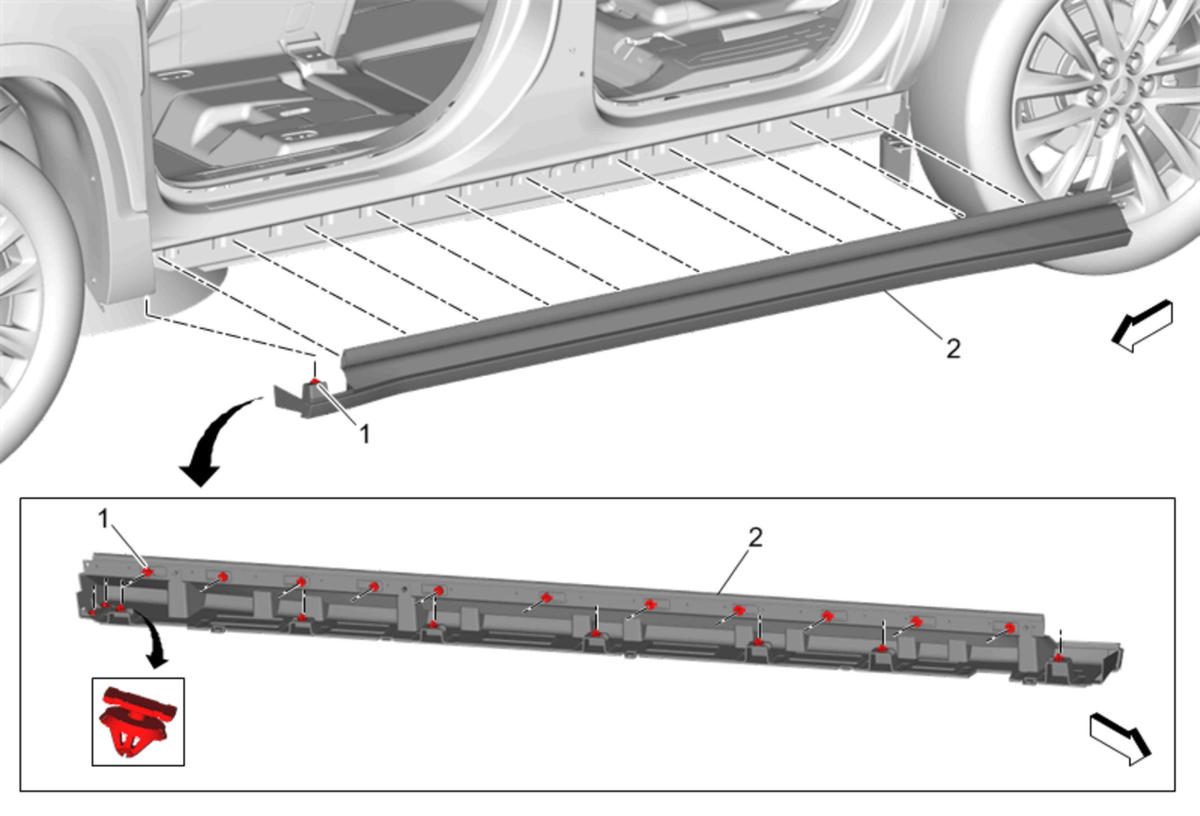

Fig 1: Rocker Panel Molding

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Rear Tire Front Air Deflector Replacement Open the front and rear side doors.
1	Rocker Panel Molding Retainer (Qty: 18)
2	Rocker Panel Molding Procedure Using the appropriate tool, release the retainers from the bottom edge and pull down the rocker panel molding from the body side outer panel. Using the appropriate tool, release the retainers from the top edge, pull out the rocker panel molding from the body side outer panel and remove from the vehicle. Replace the rocker panel molding retainers as needed.

Callout

Component Name

Preliminary Procedures

Rear Tire Front Air Deflector Replacement
Open the front and rear side doors.

Rocker Panel Molding Retainer (Qty: 18)

Rocker Panel Molding

Procedure

Using the appropriate tool, release the retainers from the bottom edge and pull down the rocker panel molding from the body side outer panel.
Using the appropriate tool, release the retainers from the top edge, pull out the rocker panel molding from the body side outer panel and remove from the vehicle.
Replace the rocker panel molding retainers as needed.
