Rear Closure Center with License Plate Applique Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

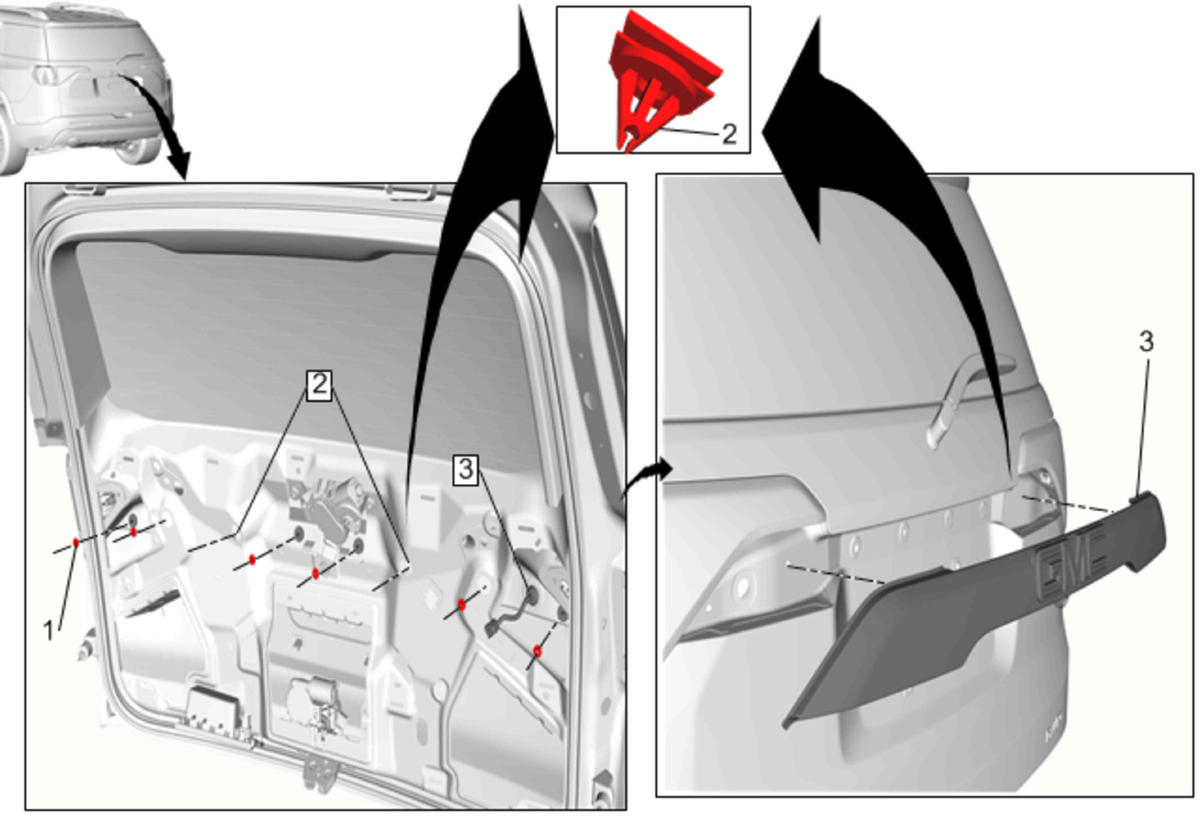

Fig 1: Rear Closure Center with License Plate Applique

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Open and support the rear liftgate. Liftgate Lower Trim Finish Panel Replacement
1	Rear Closure Center with License Plate Applique Nut (Qty: 6) CAUTION: Refer to Fastener Caution . Tighten 4.7 N.m (42 lb in)
2	Rear Closure Center with License Plate Applique Retainer (Qty: 2) Procedure With a trim type release tool disengage the retainers on the rear closure center with license plate applique.
3	Rear Closure Center with License Plate Applique Procedure Disconnect the electrical connector. Disengage the grommet from the liftgate outer panel.
