Front Side Door Lower Molding Replacement (Except Denali)

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

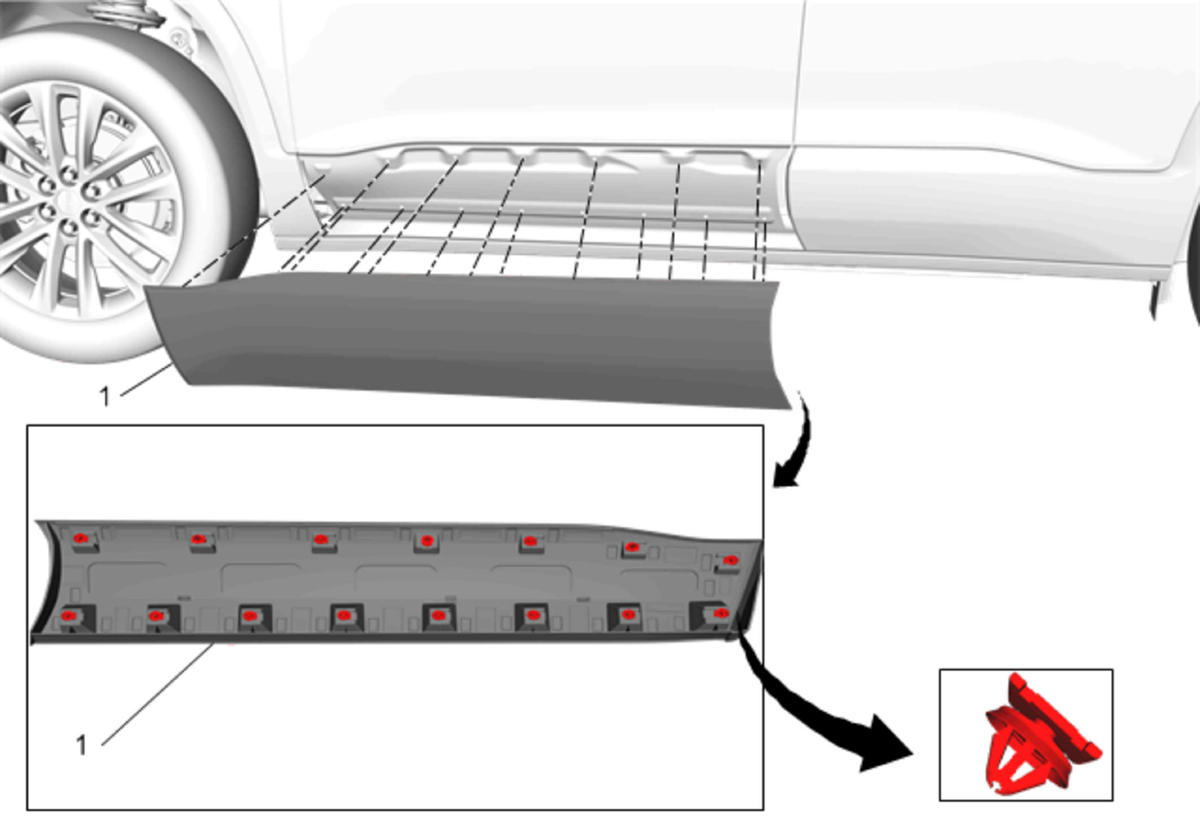

Fig 1: Front Side Door Lower Molding (Except Denali)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Side Door Lower Molding Procedure Apply two layers of masking tape around the top edge of the front side door lower molding to prevent any paint surface damage. Starting at the front top corner using a suitable flat bladed plastic tool, release the front side door lower molding retainers. Replace the front side door lower molding retainers as needed. Using a 50/50 mixture of isopropyl alcohol and clean drinkable water and a clean towel, remove the left over adhesive residue from the masking tape.

Callout

Component Name

Front Side Door Lower Molding

Procedure

Apply two layers of masking tape around the top edge of the front side door lower molding to prevent any paint surface damage.
Starting at the front top corner using a suitable flat bladed plastic tool, release the front side door lower molding retainers.
Replace the front side door lower molding retainers as needed.
Using a 50/50 mixture of isopropyl alcohol and clean drinkable water and a clean towel, remove the left over adhesive residue from the masking tape.
