Rear Bumper Lower Fascia Bracket Replacement
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

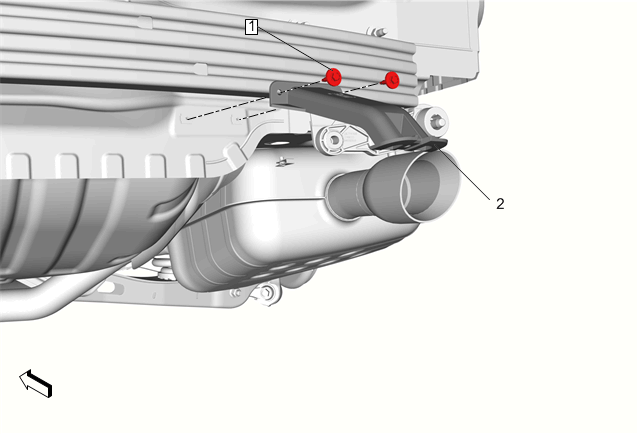

| Callout | Component Name |
|---|---|
| Preliminary Procedure Rear Bumper Fascia Replacement . |
|
| 1 | Rear Bumper Fascia Lower Bracket Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Rear Bumper Fascia Lower Bracket |
