Front Bumper Lower Fascia Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

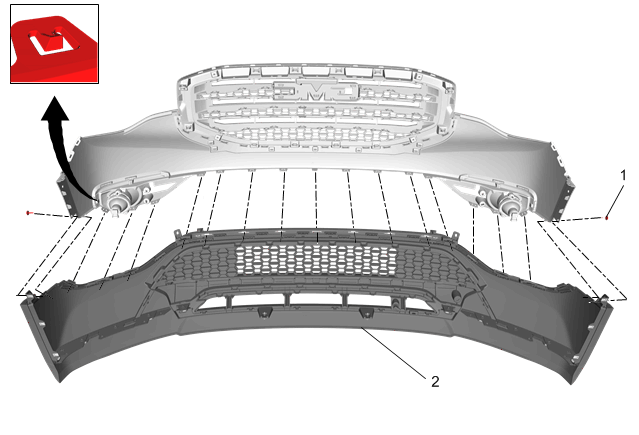

Fig 1: Front Bumper Lower Fascia

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Front Bumper Fascia Molding Replacement Front Fog Lamp Replacement
1	Front Bumper Lower Fascia Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Bumper Lower Fascia Procedure Place the front bumper fascia down on a clean protected surface. Reposition the wiring harness. Carefully push a small nylon wedge between the fascia and the lower fascia. Insert a small flat-bladed tool into the fascia slot and depress the tabs one at a time and pull on the fascia at the same time to gradually remove the lower fascia from the fascia. Transfer components as necessary.

Callout

Component Name

Preliminary Procedures

Front Bumper Fascia Molding Replacement
Front Fog Lamp Replacement

Front Bumper Lower Fascia Bolt (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Front Bumper Lower Fascia

Procedure

Place the front bumper fascia down on a clean protected surface.
Reposition the wiring harness.
Carefully push a small nylon wedge between the fascia and the lower fascia. Insert a small flat-bladed tool into the fascia slot and depress the tabs one at a time and pull on the fascia at the same time to gradually remove the lower fascia from the fascia.
Transfer components as necessary.
