Removal Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove Exhaust Muffler Exhaust Muffler Replacement (LGX)Exhaust Muffler Replacement (LCV)
  2. Remove Rear Bumper Fascia Rear Bumper Fascia Replacement

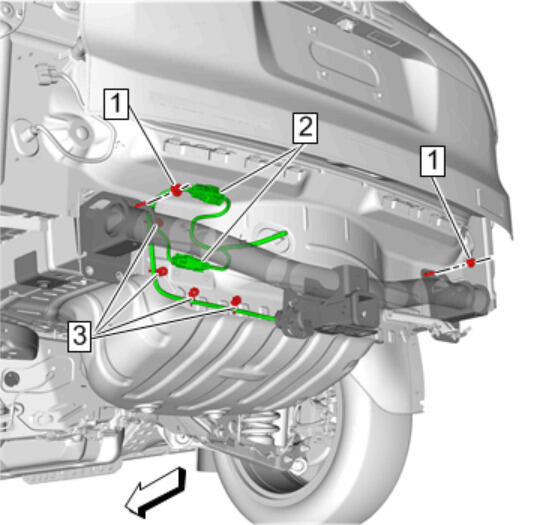

    3. Fig 1: Electrical Connector, Retainer And Trailer Hitch Support Bracket Nut
    GM4375793Courtesy of GENERAL MOTORS COMPANY
  3. Disconnect Electrical Connector (2)
  4. Remove Trailer Hitch Support Bracket Nut (1)
  5. Disengage Retainer (3)

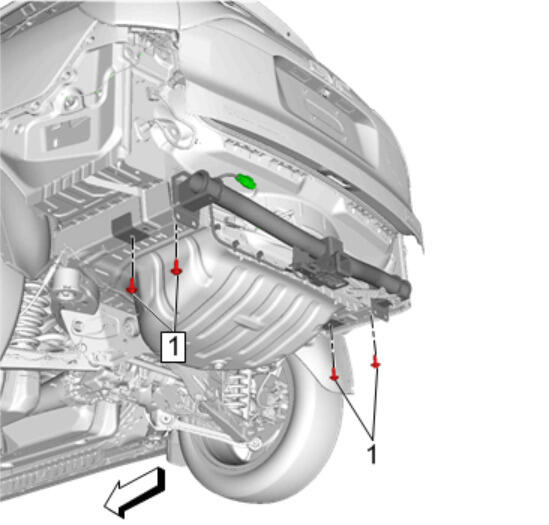

    6. Fig 2: Trailer Hitch Support Bracket Bolt - Underside
    GM4375795Courtesy of GENERAL MOTORS COMPANY
  6. Remove Trailer Hitch Support Bracket Bolt - Underside (1)

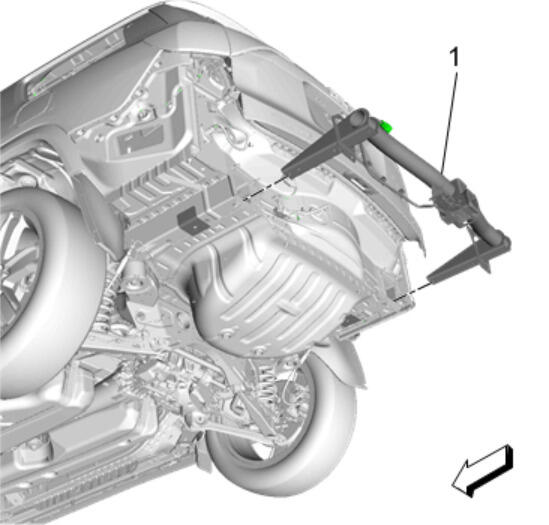

    7. Fig 3: Trailer Hitch Assembly
    GM4375796Courtesy of GENERAL MOTORS COMPANY
  7. Remove Trailer Hitch Assembly (1)
