Removal Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove Rear Suspension Cradle (1) Rear Suspension Cradle Replacement (AWD)

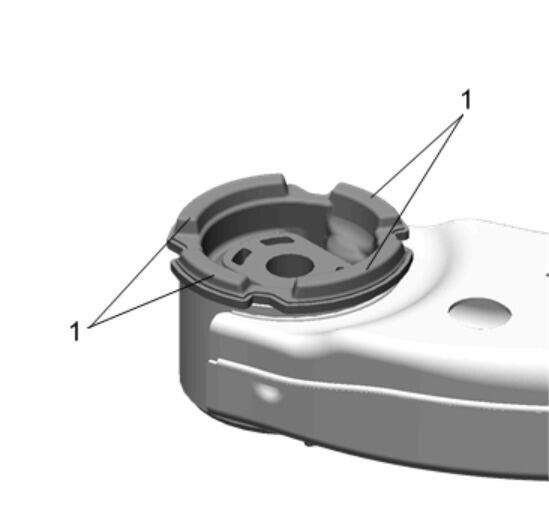

    2. Fig 1: Bushing Tabs
    GM4373778Courtesy of GENERAL MOTORS COMPANY
  2. Grind off the bushing tabs (1) on the bottom of the rear suspension cradle insulator to allow the insulator to fit into the receiving cup.

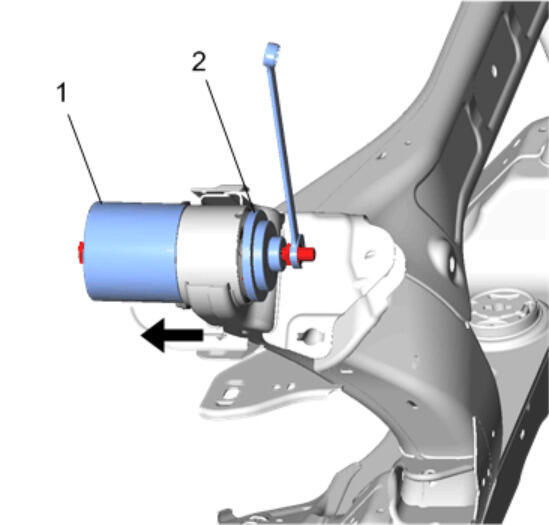

    3. Fig 2: Rear Suspension Cradle Insulator And Special Tool
    GM4373721Courtesy of GENERAL MOTORS COMPANY
  3. Install the CH-48509  Cradle Bushing Receiver Cup and the CH-45725-1  Puck as shown.
  4. Tighten the nut so the puck (2) pushes the rear suspension cradle insulator into the cradle bushing receiving cup (1).
