Installation Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

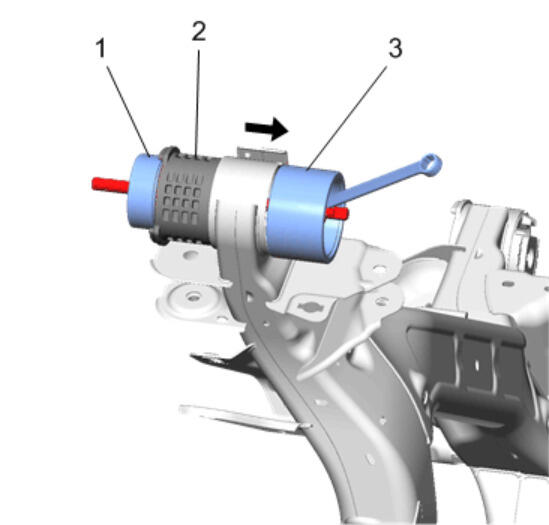

    Fig 1: Bushing Mount Cup And Receiving Cup
    GM4373723Courtesy of GENERAL MOTORS COMPANY
  1. Install the CH-45725-4  Bushing Mount Cup and the CH-45725-A  Receiving Cup as shown.
  2. Slowly press the cup (1) and rear suspension cradle insulator (2) towards the receiving cup (3).
  3. For stability, the CH-45725-2A  Receiver Cup can be flipped as shown after the bushing installation is started.
  4. Install Rear Suspension Cradle (1) Rear Suspension Cradle Replacement (FWD)
