Rear Cradle Mount Bolt Bracket Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

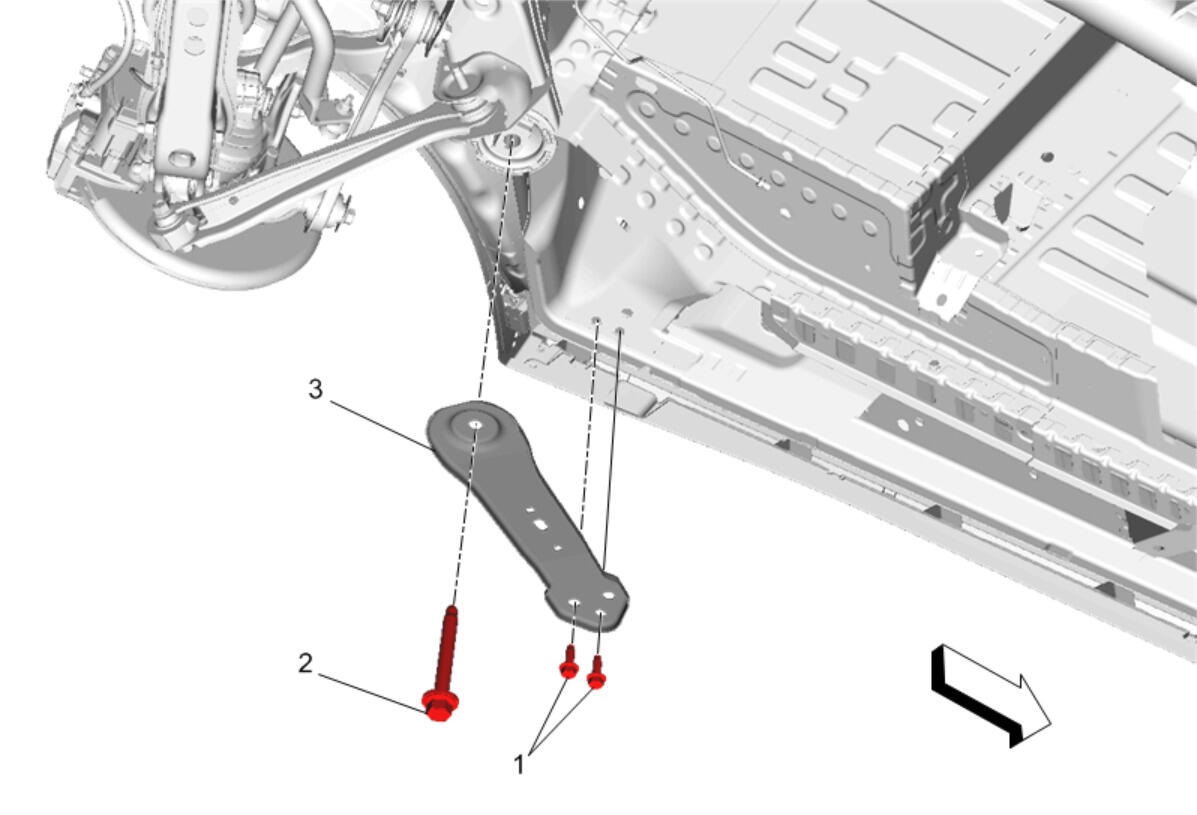

Fig 1: Rear Cradle Mount Bolt Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Rear Tire Front Air Deflector Replacement Rear Wheelhouse Liner Replacement Support the rear cradle with a suitable jack.
1	Rear Cradle Mount Bolt Bracket Bolt (Qty: 2) CAUTION: Refer to Fastener Caution Tighten 58 N.m (43 lb ft)
2	Rear Suspension Cradle Bolt CAUTION: This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component. NOTE: Replace with a NEW bolt. Tighten First Pass: 160 N.m (118 lb ft) Final Pass: (60-75 degrees)
3	Rear Cradle Mount Bolt Bracket
