Installation Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

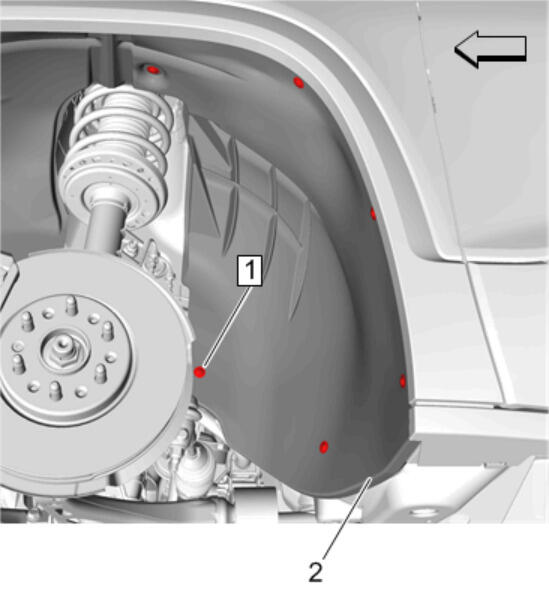

    Fig 1: Front Wheelhouse Liner
    GM4372985Courtesy of GENERAL MOTORS COMPANY
  1. Install Front Wheelhouse Liner (2)
    2. CAUTION:

    Refer to Fastener Caution

  2. Install Front Wheelhouse Liner Screw (1) and tighten 2.5 N.m (22 lb in)

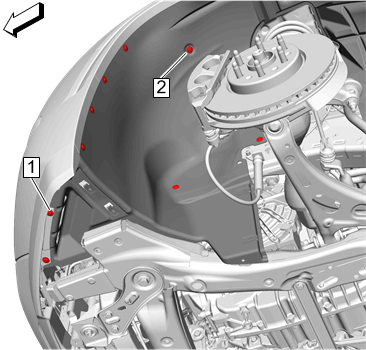

    3. Fig 2: Front Wheelhouse Liner Screw
    GM4372982Courtesy of GENERAL MOTORS COMPANY
  3. Install Front Wheelhouse Liner Retainer (2)
  4. Install Front Wheelhouse Liner Screw (1) and tighten 2.5 N.m (22 lb in)
    5. Fig 3: Front Compartment Splash Shield
    GM4283490Courtesy of GENERAL MOTORS COMPANY
  5. Install Front Compartment Splash Shield (2)Front Compartment Splash Shield Replacement

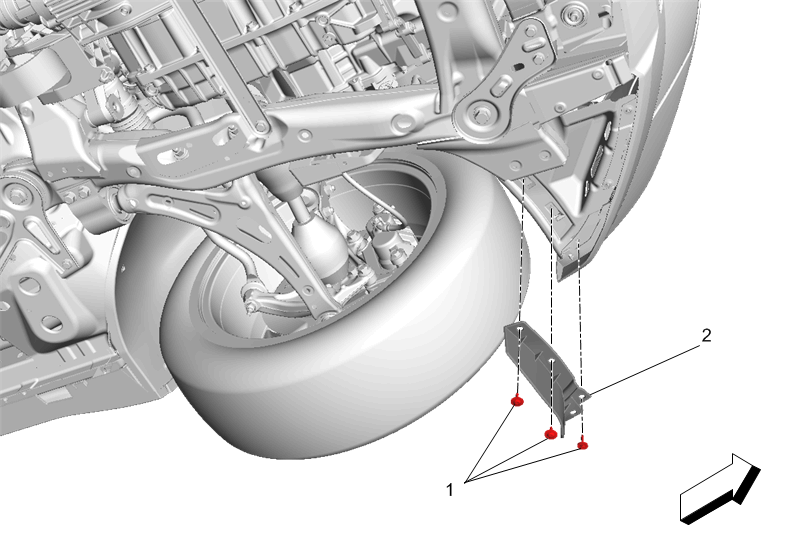

    6. Fig 4: Front Tire Front Air Deflector
    GM4372894Courtesy of GENERAL MOTORS COMPANY
  6. Install Front Tire Front Air Deflector (2) Front Tire Front Air Deflector Replacement
  7. Install the left front tire and wheel assembly. Tire and Wheel Removal and Installation
