Front Cradle Mount Bolt Bracket Replacement (Front)

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

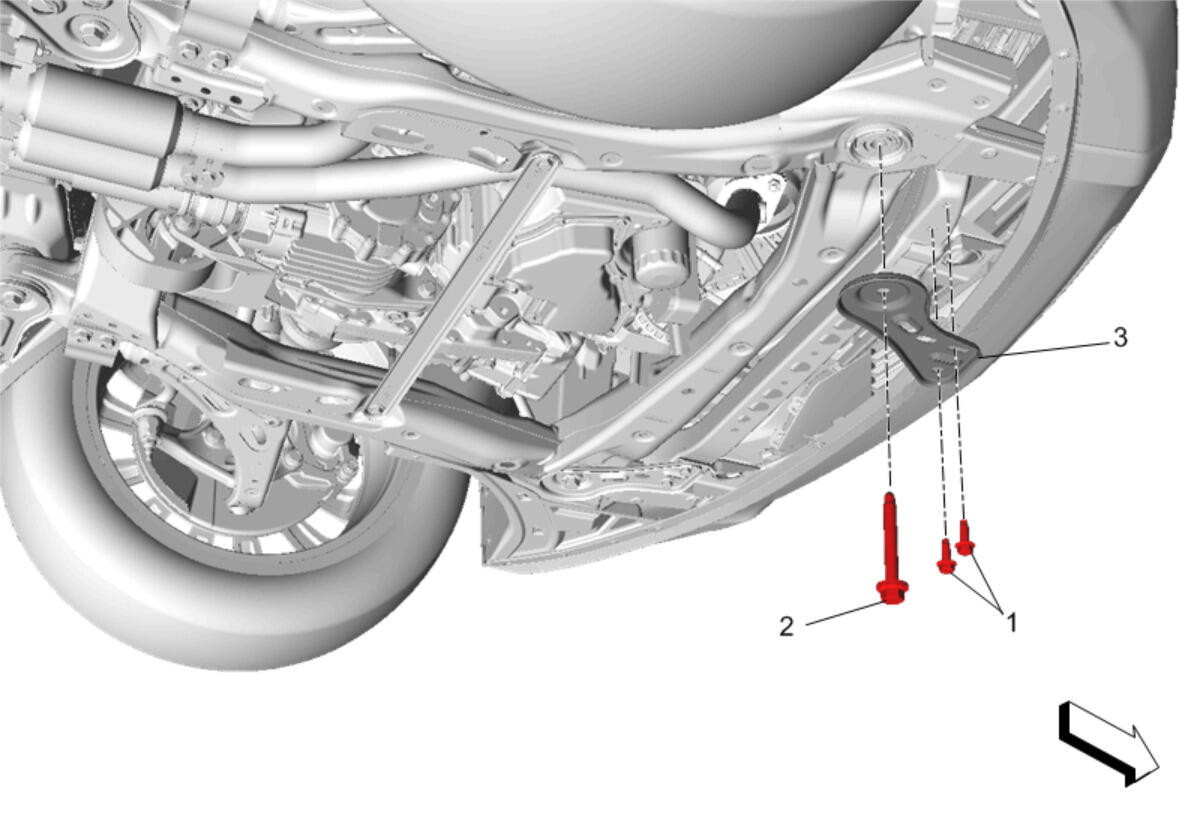

Fig 1: Front Cradle Mount Bolt Bracket (Front)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Lifting and Jacking the Vehicle Support the front cradle with a suitable jack.
1	Front Cradle Mount Bolt Bracket Bolt (Qty: 2) CAUTION: Refer to Fastener Caution Tighten 58 N.m (43 lb ft)
2	Drivetrain and Front Suspension Cradle Front Bolt CAUTION: This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component. NOTE: Replace with a NEW bolt. Tighten First Pass: 160 N.m (118 lb ft) Final Pass: (60-75 degrees)
3	Front Cradle Mount Bolt Bracket
