Removal Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:

Refer to Brake Dust Warning .

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle
  2. Remove the tire and wheel assembly. Tire and Wheel Removal and Installation

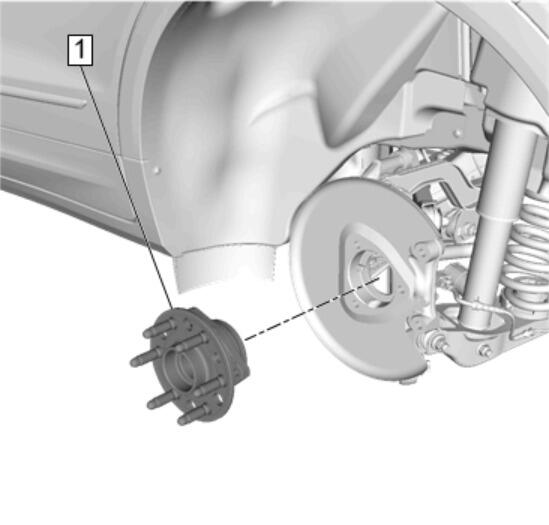

    3. Fig 1: Rear Wheel Bearing and Hub Assembly
    GM4282286Courtesy of GENERAL MOTORS COMPANY
  3. Remove Rear Wheel Bearing and Hub Assembly (1)Rear Wheel Bearing and Hub Replacement (AWD)Rear Wheel Bearing and Hub Replacement (FWD)

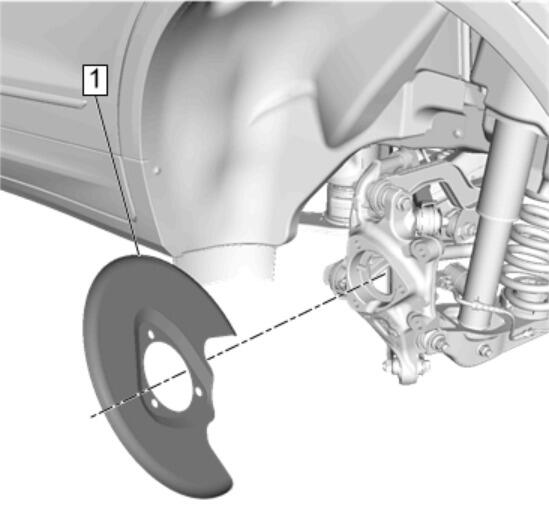

    4. Fig 2: Rear Brake Shield
    GM4282288Courtesy of GENERAL MOTORS COMPANY
  4. Remove Rear Brake Shield (1)
