Removal Procedure
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- Raise and support the vehicle. Lifting and Jacking the Vehicle
- Remove the tire and wheel assembly. Tire and Wheel Removal and Installation
- Remove Brake Caliper Bracket Bolt (1)

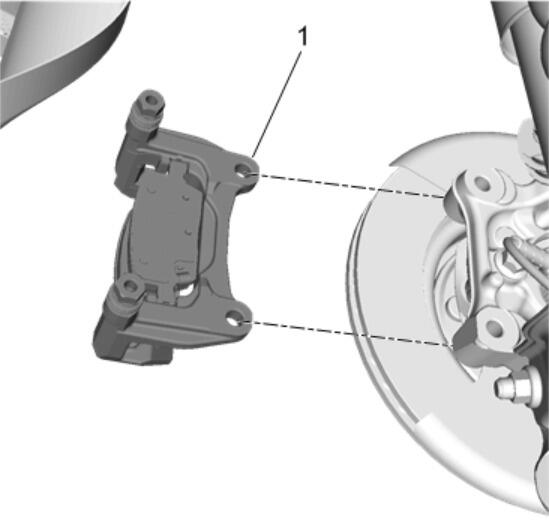

- Remove Brake Caliper and Bracket Assembly (1)
- Support the brake caliper and bracket assembly with heavy mechanics wire.

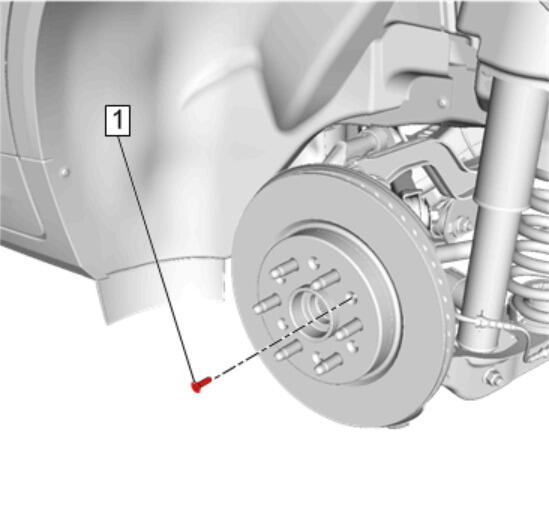

- Remove Brake Rotor Bolt (1)

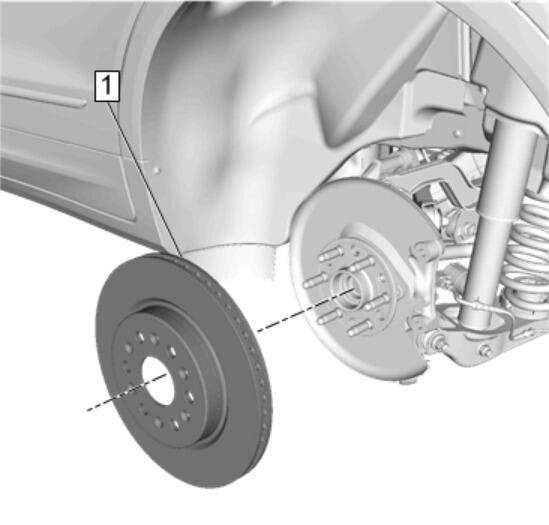

- Remove Brake Rotor (1)
NOTE:
Caliper assembly not shown for clarity.
CAUTION:
Support the brake caliper with heavy mechanic wire, or equivalent, whenever it is separated from its mount and the hydraulic flexible brake hose is still connected. Failure to support the caliper in this manner will cause the flexible brake hose to bear the weight of the caliper, which may cause damage to the brake hose and in turn may cause a brake fluid leak.
